GLD2200/7.5 /S belt feeder

Introduction of GLD2200/7.5/S belt coal feeder

Gld2200/7.5 /S belt coal feeder is a new type of coal feeder developed for the large production system with high yield and high efficiency and the current feeder can no longer meet the requirements of coal mine production. Based on the K type reciprocating feeder, this product changes the reciprocating mechanism into conveyor belt mechanism, thus the feeding motion changes from sliding friction to rolling friction. The friction coefficient is greatly reduced, so that the power consumption is also significantly reduced. The feeding mode is changed from intermittent feeding to continuous feeding, and the feeding quantity is dynamically and continuously variable, so that the feeding system can meet the requirements of high efficiency, energy saving and environmental protection.

Gld2200/7.5 /S Belt coal feeder technical parameters

Specification MODEL GLD2200/7.5/S

Power kw7.5

Voltage V380 ~ 660

Suitable for environment explosion-proof type

Maximum feed t/ H2200

Maximum band speed m/s0.98

External dimension mm 3683x1605x1868

Weight kg4100

Main wear parts of GLD2200/7.5/S belt coal feeder

Driving drum 2, reversing drum 3, transmission chain 4, heavy buffer roller 5, coal scraper 6, wear-resistant and flame retardant tape 7, sweeper 8, driving device 9, lower roller

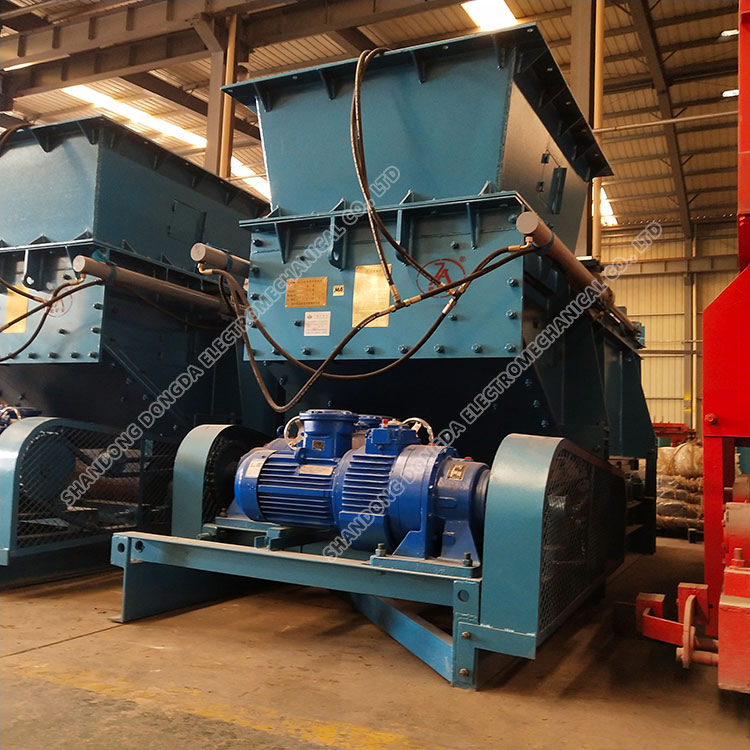

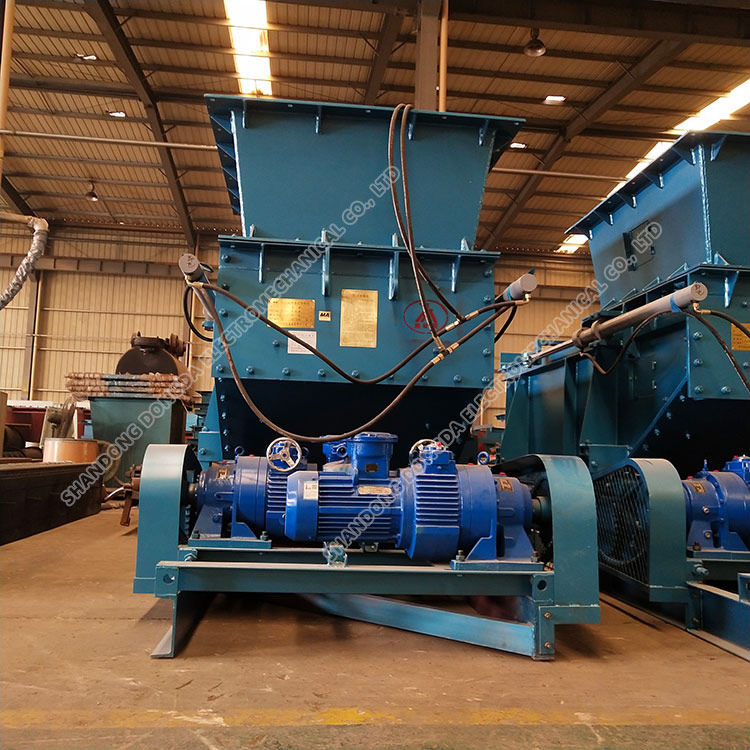

Physical drawing of GLD222/7.5 /S belt coal feeder
