GLD3300/7.5 /S armour belt feeder

Main features of GLD3300/7.5/S belt feeder

1. Low operating power, low energy consumption and good operation economy;

2. Large feeding volume, small volume, light weight, convenient underground transportation and installation, can greatly reduce the amount of shaft engineering;

3. Large feeding adjustment range, easy adjustment (stepless speed regulation);

4. The moving part has low working resistance, low power consumption and long working life of the moving parts;

5. Smooth operation, low noise, environmental protection;

6. Parts are universal, easy to install and maintain.

In addition to the production of GLD series standard a to the coal machine, but also the production of non-standard, elongated a to the material machine.

GLD3300/7.5 /S armour belt feeder technical parameters

Specification MODEL GLD330/7.5 /S

Power kw: 7.5

Voltage V: 380 ~ 660

Adaptability to environment: explosion-proof type

Maximum feed t/h: 3300

Maximum band speed m/s: 0.98

External dimension mm: 4052x1622x2338

Weight: 5000

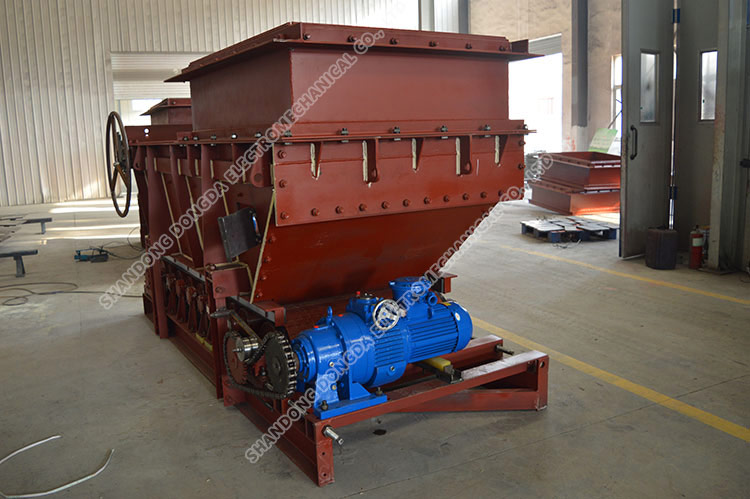

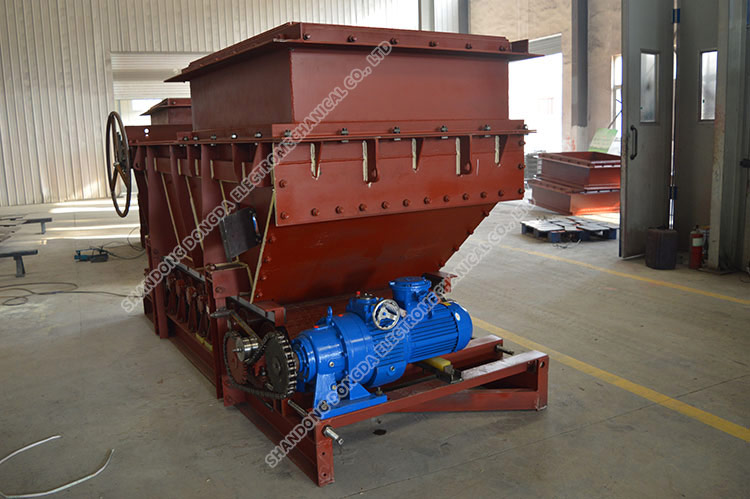

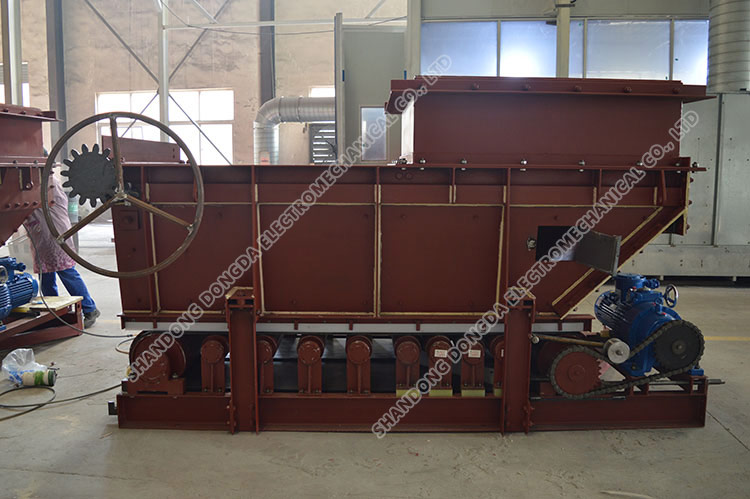

Real drawing of GLD3300/7.5/S armour belt feeder
