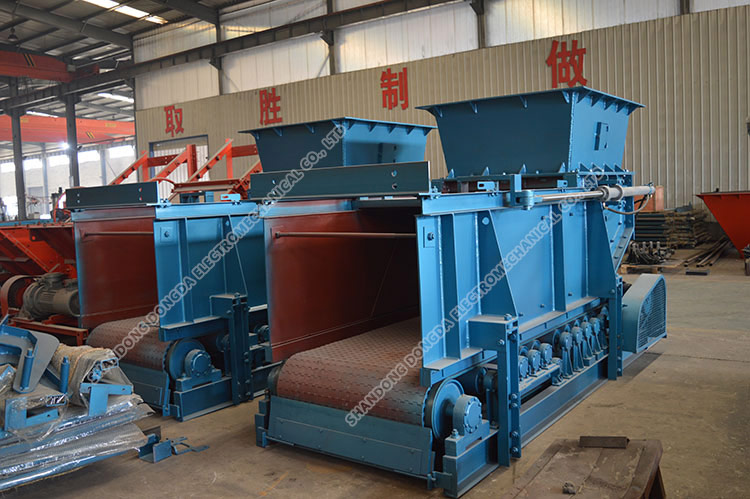

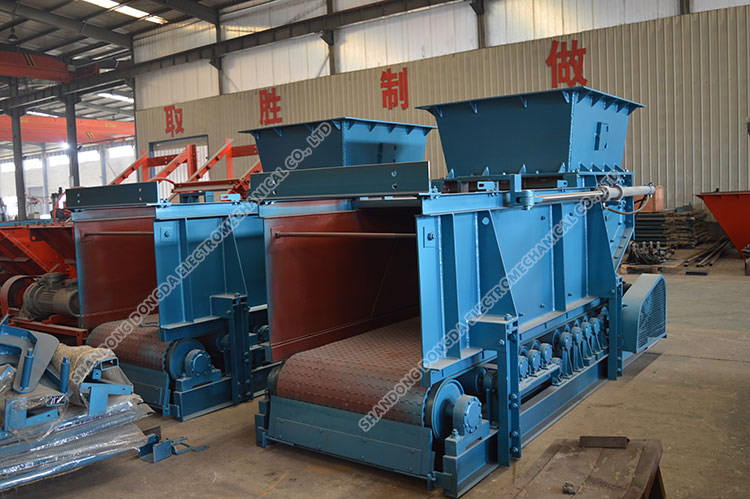

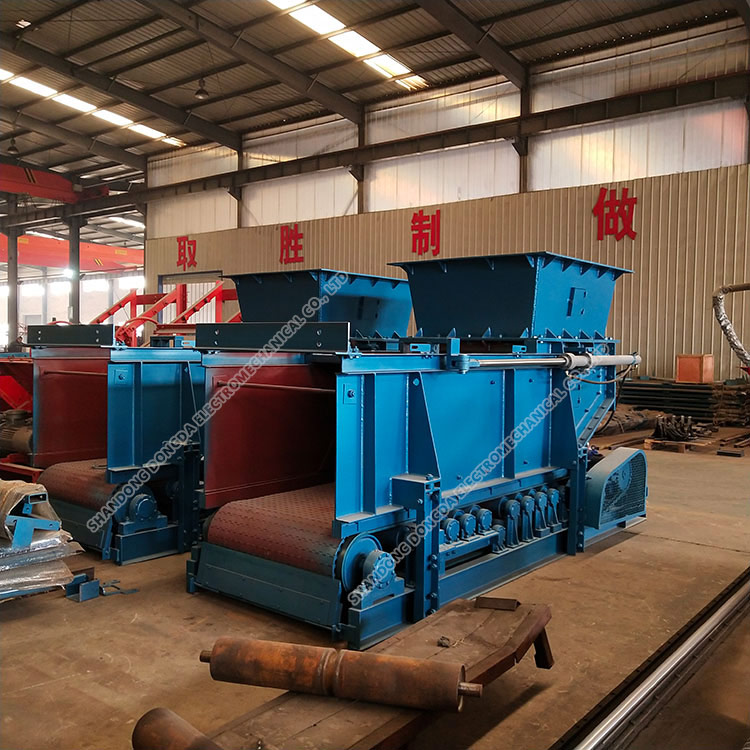

GLD1500/7.5 /B a belt feeder

GLD1500/7.5 /B Belt feeder overview

GLD1500/7.5 /B belt coal feeder is a new type of coal feeder developed for the large production system with high yield and high efficiency and the current feeder can no longer meet the requirements of coal mine production. On the basis of K type reciprocating and vibration type feeder, the reciprocating movement mechanism is changed into conveyor belt type mechanism, which changes the feeding movement from sliding friction to rolling friction. The friction coefficient is greatly reduced, so that the power consumption is also significantly reduced. The feeding mode is changed from intermittent feeding to continuous feeding, and the feeding quantity is dynamically and continuously variable, so that the feeding system can meet the requirements of high efficiency, energy saving and environmental protection.

Main features of GLD1500/7.5/B belt feeder

1. Low operating power (coal supply 4000 t/h -- 11KW), low energy consumption, good operation economy;

2. Large feeding volume, small volume, light weight, convenient underground transportation and installation, can greatly reduce the amount of shaft engineering;

3. Large feeding adjustment range, easy adjustment (stepless speed regulation);

4. The moving part has low working resistance, low power consumption and long working life of the moving parts;

5. Smooth operation, low noise, environmental protection;

6. Parts are universal, easy to install and maintain.

GLD1500/7.5 /B A belt feeder technical parameters

Specification: GLD1500/7.5/B

Power: 1.5 kw

Maximum feed t/h: 1500

Maximum band speed m/s: 0.98

Voltage V: 380 ~ 660

Adaptability to environment: explosion-proof type

Weight: 4000

GLD1500/7.5 /B A belt feeder
