Working principle of GLD2200/7.5/S belt feeder
The material in the bin enters the box body through the funnel frame and falls on the armored belt. When the armored belt is stationary, the material will eventually stop moving by internal friction force and form a static accumulation at a certain Angle at the outlet. When the driving drum begins to rotate under the external driving force, the belt drives the belt to move, and the belt drives the material on the belt to guide the material to the discharge port. The belt in operation turns back after discharging at the discharge port, and the material is continuously discharged from the discharge port, thus completing the feeding process. A sweeper installed in the direction of the roller cleans the material stuck to the tape to avoid material scattering on the return side. To change the amount of feed, the speed of the belt can be changed by adjusting the speed of the output shaft of the CVT reducer, thus changing the amount of feed. To change the amount of feed, you can also change the motor speed by selecting a frequency converter, thus changing the amount of feed. During the operation of the material machine brought by A, the main load of the system is supported by the rolling bearing, with small operating resistance, small driving power required by the equipment, and long working life of all parts of the system.
GLD2200/7.5 /S armour belt feeder technical parameters
Specification MODEL GLD2200/7.5/S
Power kw: 7.5
Voltage V 380 ~ 660
Adaptability to environment: explosion-proof type
Maximum feed t/h: 2200
Maximum band speed m/s: 0.98
External dimension mm: 3683x1605x1868
Weight: 4100

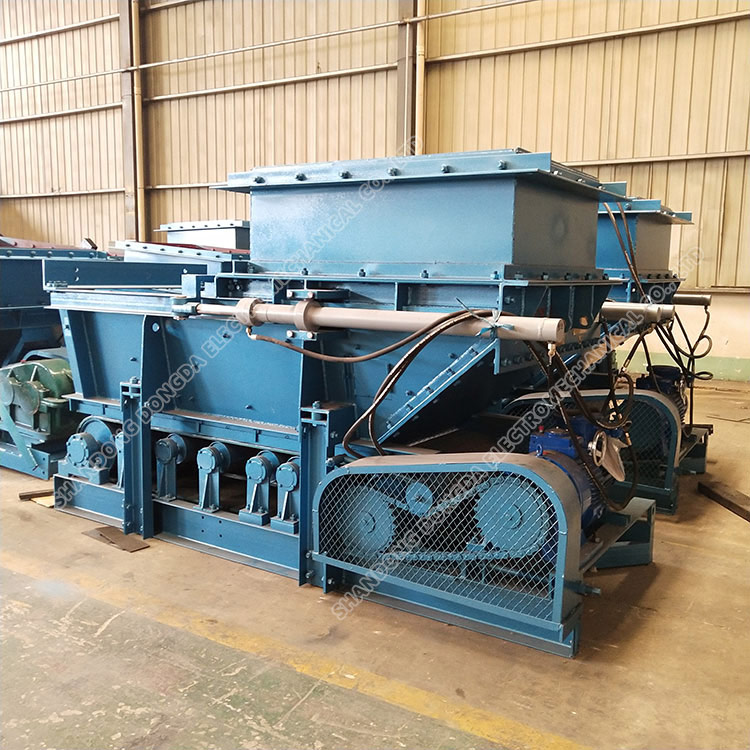

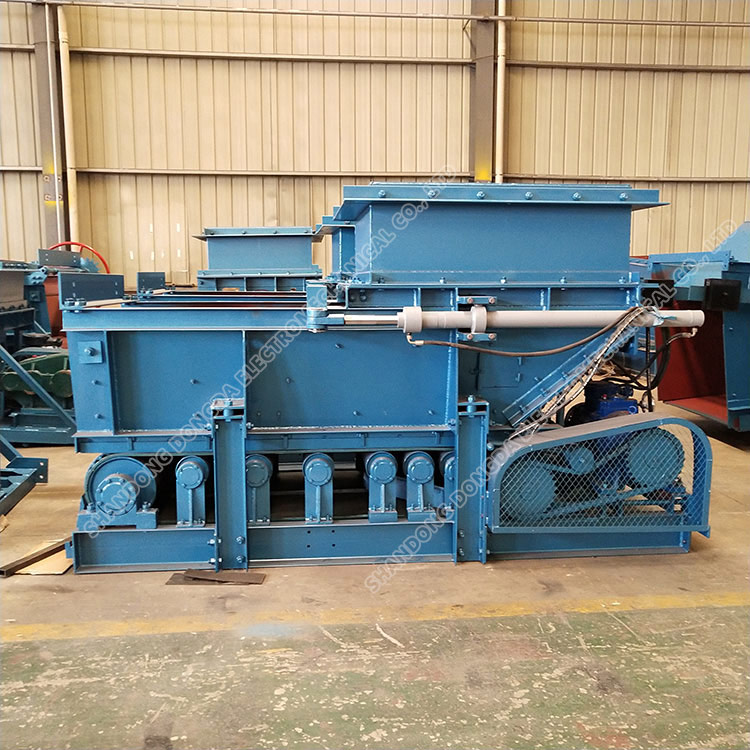

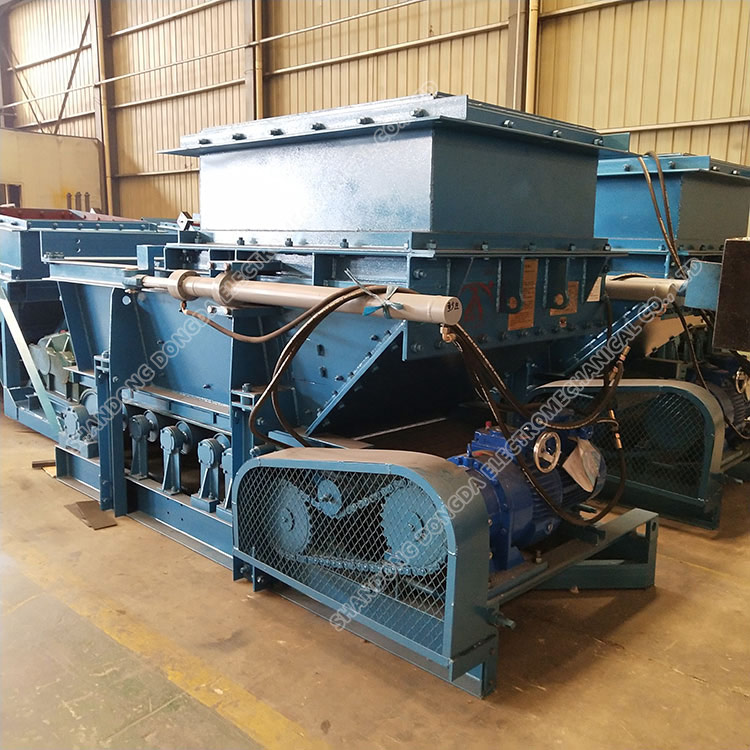

GLD2200/7.5 /S Belt feeder
