GLD800/5.5 / B a belt feeder overview
GLD series A feeder is a new type of feeder developed for large production system of high yield and high efficiency mine and the current feeder can no longer meet the requirements of coal mine production.
GLD800/5.5 /B Belt feeder main features
1. Low operating power (coal supply 4000 t/h -- 11KW), low energy consumption, good operation economy;
2. Large feeding volume, small volume, light weight, convenient underground transportation and installation, can greatly reduce the amount of shaft engineering;
3. Large feeding adjustment range, easy adjustment (stepless speed regulation);
4. The moving part has low working resistance, low power consumption and long working life of the moving parts;
5. Smooth operation, low noise, environmental protection;
6. Parts are universal, easy to install and maintain.
GLD800/5.5 /B Belt feeder technical parameters
Specification: GLD800/5.5/B
Power kw: 5.5
Voltage V: 380 ~ 660
Adaptability to environment: explosion-proof type
Maximum feed t/h: 800
Maximum band speed m/s: 0.75
Weight: 3500
GLD800/5.5 / B a belt feeder main vulnerable parts
1, driving drum 2, reversing drum 3, transmission chain 4, heavy buffer roller 5, coal scraper 6, armour belt 7, wear-resisting and flame-retardant tape 8, sweeper 9, driving device 10, lower roller

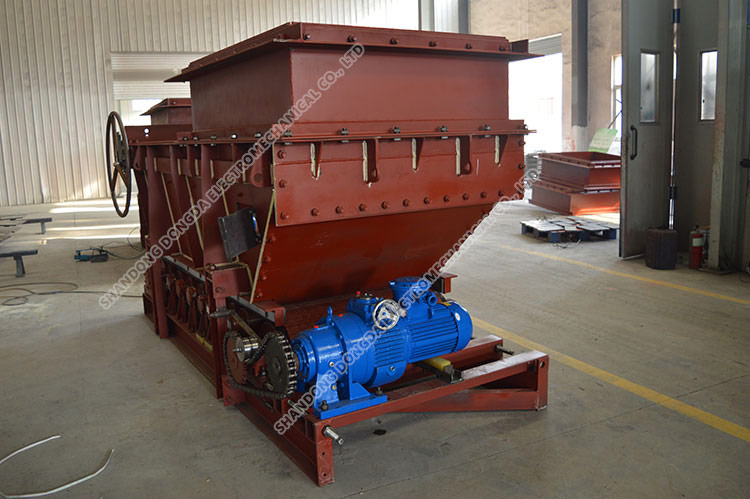

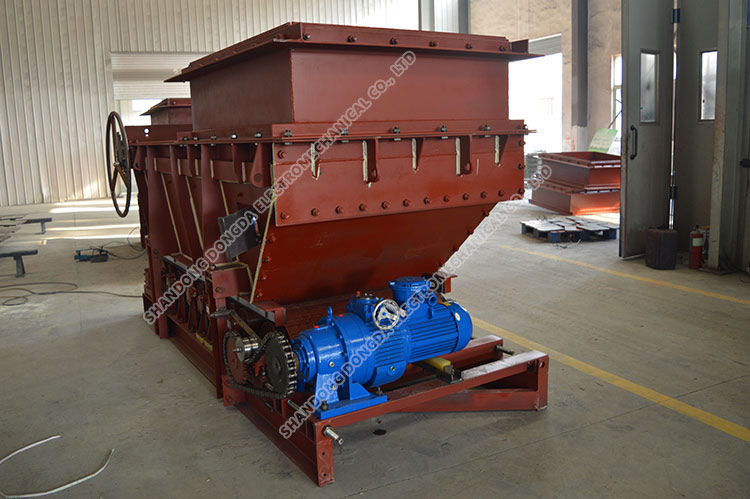

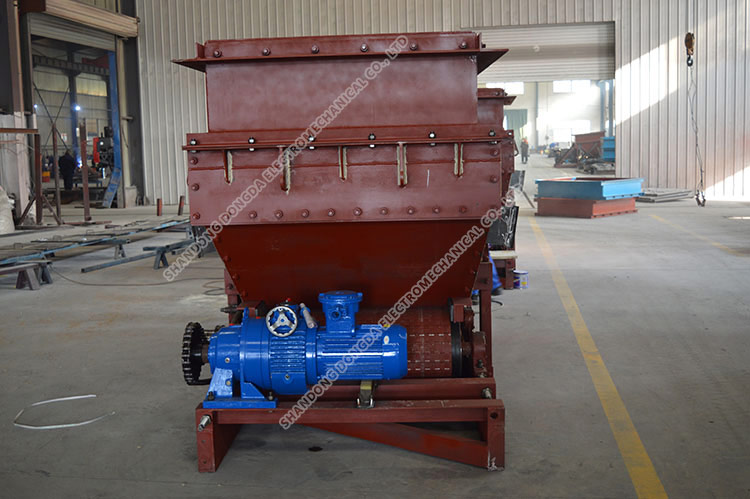

GLD800/5.5 / B a belt feeder physical figure
