Gld2200/7.5 /B belt coal feeder is a new type of coal feeder developed for the large production system with high yield and high efficiency and the current feeder can no longer meet...

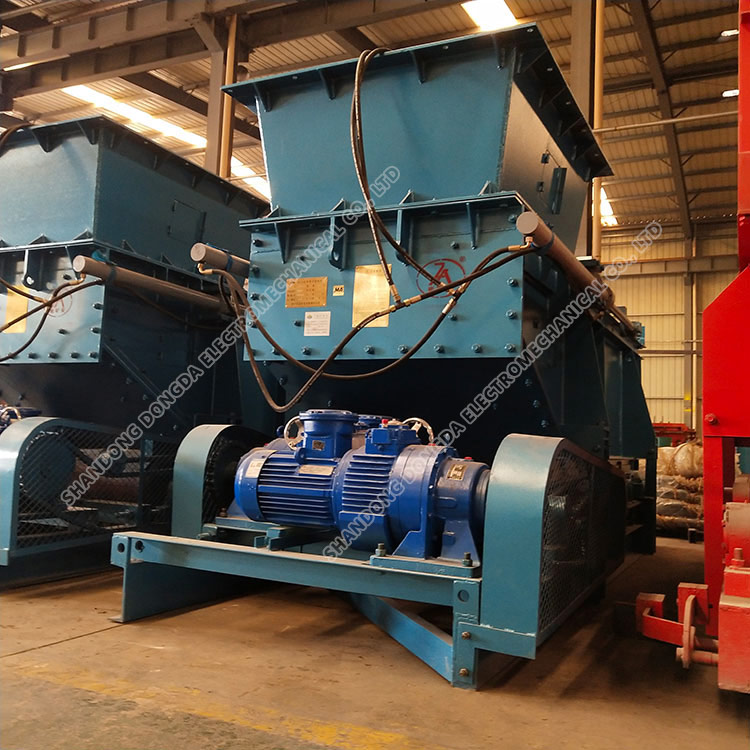

Gld2200/7.5 /B Belt coal feeder
Gld2200/7.5 /B belt coal feeder is a new type of coal feeder developed for the large production system with high yield and high efficiency and the current feeder can no longer meet the requirements of coal mine production. Based on the K type reciprocating feeder, this product changes the reciprocating mechanism into conveyor belt mechanism, thus the feeding motion changes from sliding friction to rolling friction. The friction coefficient is greatly reduced, so that the power consumption is also significantly reduced. The feeding mode is changed from intermittent feeding to continuous feeding, and the feeding quantity is dynamically and continuously variable, so that the feeding system can meet the requirements of high efficiency, energy saving and environmental protection.
Main features of GLD2200/7.5/B belt coal feeder
1. Large feeding quantity, small volume, light weight, convenient underground transportation and installation, can greatly reduce the amount of shaft engineering;
2. Large feeding adjustment range, easy to adjust (stepless speed regulation);
3. The moving part has low working resistance, low power consumption and long working life.
4. Smooth operation, low noise, environmental protection;
5. Parts are universal, easy to install and maintain.
Gld2200/7.5 /B belt coal feeder technical parameters
Specification: GLD2200/7.5/B
Power kw: 7.5
Voltage V: 380 ~ 660
Adaptability to environment: explosion-proof type
Maximum feed t/h: 2200
Maximum band speed m/s: 0.98
External dimension mm: 3683x1605x1868
Weight: 4100

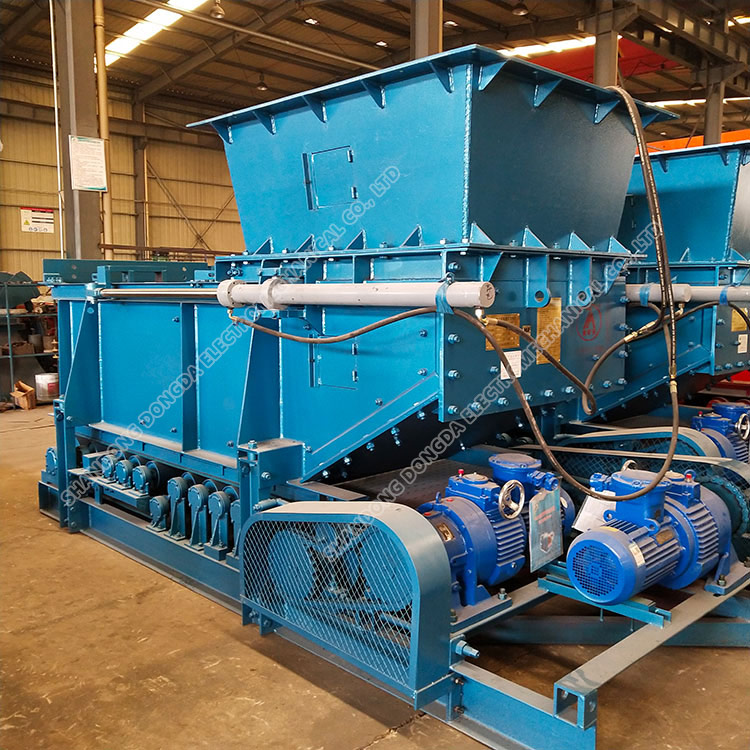

Gld2200/7.5 /B Belt coal feeder
、
