The feeder drives the drum

Introduce the driving drum of coal machine

The drum is a cylindrical conveyer fitting, which is divided into driving drum (driving drum) and driven drum. It is widely used in various transmission systems such as rotary screen printing machine, digital printer, conveying equipment, papermaking and packaging machinery, etc. Usually made of seamless steel tubes, but also depending on different process requirements such as aluminum alloy 6061T5, 304L/316L stainless steel, 2205 duplex stainless steel, cast steel, solid forging alloy steel core material.

Structural form: it can be divided into dynamic, non-dynamic, electric roller and so on from the form of driving. According to the form of layout, it can be divided into horizontal transport, inclined transport and turning transport. And multilayer delivery.

Frame material: carbon steel spray, stainless steel, aluminum profile.

Auxiliary accessories: gear edge, roller side guard, roller end cover.

Power mode: reducer motor drive, electric roller drive and other forms.

Transmission mode: single chain wheel, double sprocket wheel, O-belt, plane friction belt, synchronous belt, etc., bobbin drive.

Speed regulation: frequency conversion speed regulation, stepless speed regulation, etc.

Drum diameter selection: 25mm, 32mm, 38mm, 42mm, 50mm, 57mm, 60mm, 76mm, 80mm, 89mm.

Drum material selection: carbon steel galvanized, carbon steel chromium plating, carbon steel coating, aluminum alloy, stainless steel, ABS, etc.

Selection of drum types: power drum, non-power drum, single chain roller, double chain roller, O-type slot roller, cone roller, slot roller.

Fixed mode of roller: spring pressing type, internal tooth shaft type, whole flat tenon type, through shaft pin hole type.

Drum of our products are: unpowered roller, power roller, stainless steel roller, rubber roller, non-standard put roller, roller, product accumulation roller, tapered roller, carbon steel roller, polyurethane roller, drum of PVC, PU roller, drive roller, conveyor roller, transfer roller, freedom, machine roller, roller, logistics conveyor roller pressing roller, roller cover, and so on

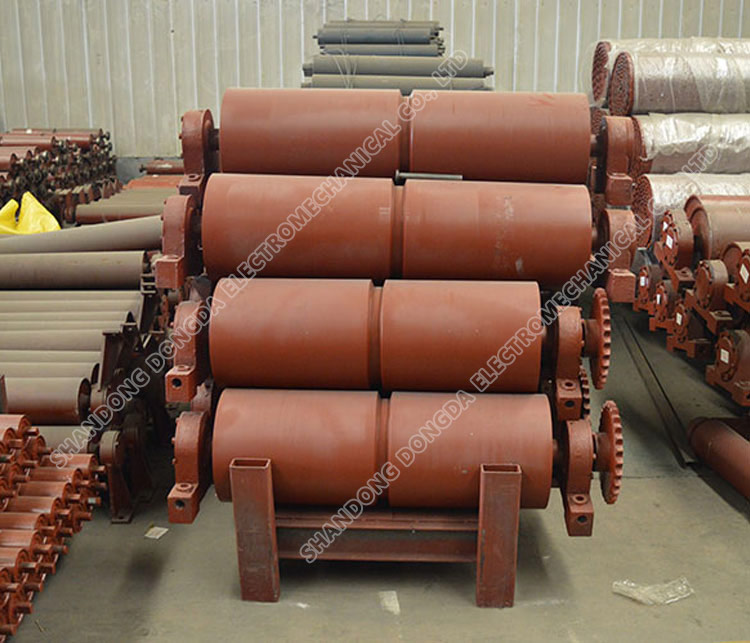

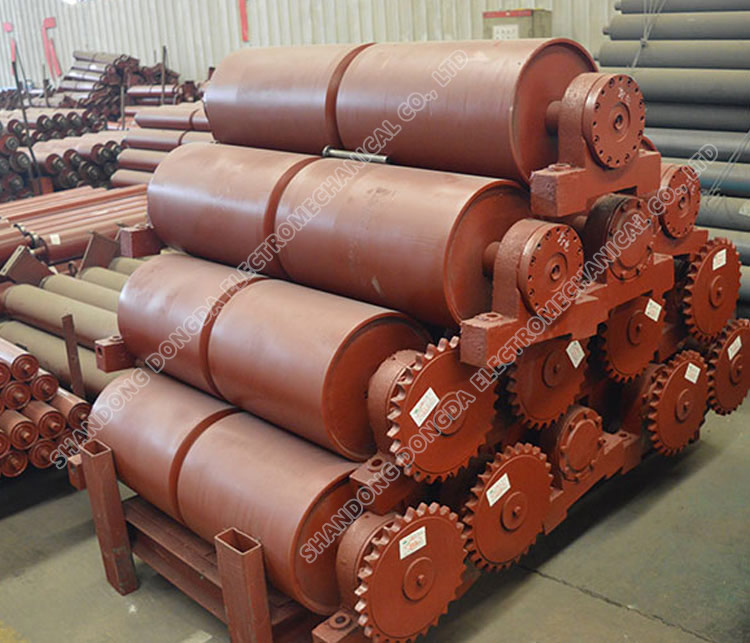

Physical drawing of driving drum for coal feeder
