Crank connecting rod device

Introduction to crank connecting rod device

Crank connecting rod is a power transmission system in reciprocating internal combustion engine. The crank link mechanism is the main moving part of the engine to realize the working cycle and complete the energy conversion. During the power stroke, the piston reciprocates the heat generated by fuel combustion, and the crankshaft turns into mechanical energy to output power. In other strokes, the rotary inertia of the crank and flywheel drives the piston up and down through the connecting rod, creating conditions for the next work.

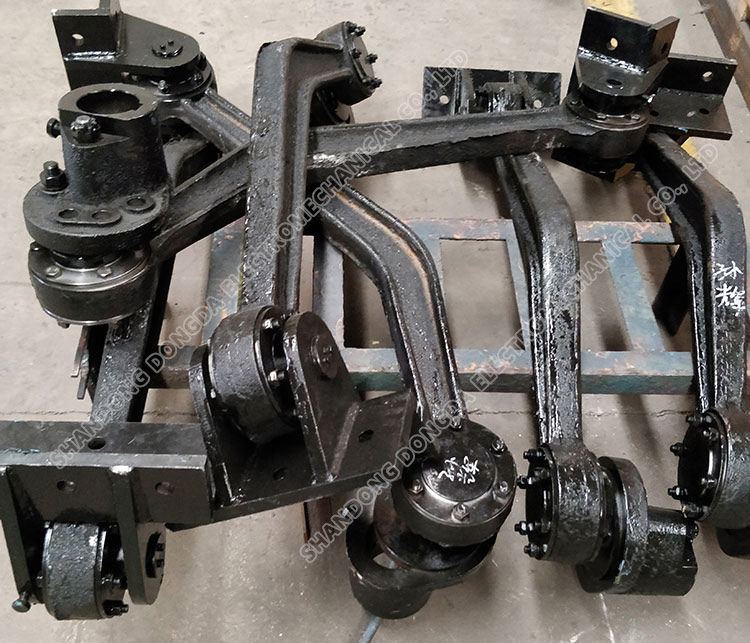

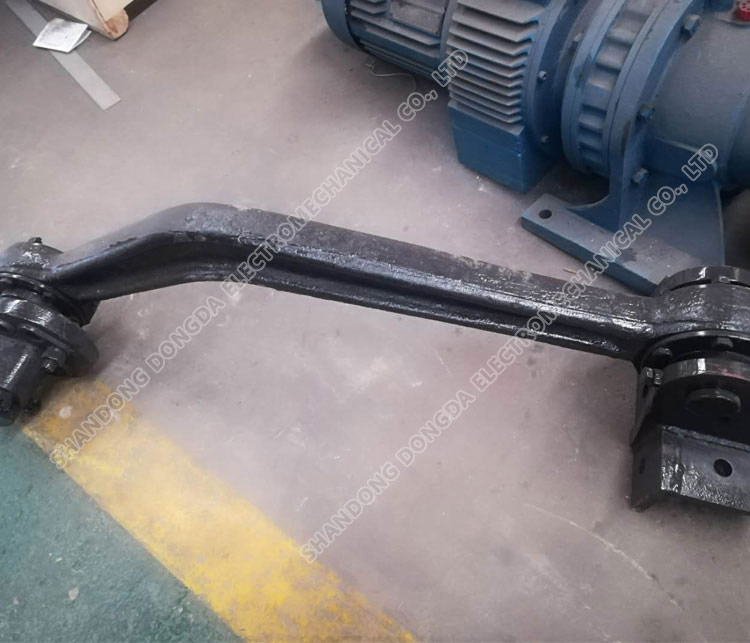

Physical drawing of crank connecting rod device
