Feeding machinebelt

Introduce the coal mecha belt

The armour belt, also known as steel belt and track, is the main part of the transmission part of the armour belt coal feeder. The armour belt is composed of reinforced nylon 1010 high-wear-resisting shaft pin connected with the new armour piece. The new type of nail plate is precision cast, made of Mn16 or high wear resistant alloy steel. Mn16 material with good abrasion resistance and toughness, reinforced nylon 1010 article in has good abrasion resistance and self-lubrication, greatly improving the armour with resistance to impact, when a belt by severe shock, first of all, its structure will impact the impact point by mail with nylon nail in spreading around, secondly, below the tape itself deformation also absorb certain impact load. At the same time, the remaining impact load is transmitted to the cushion roller and the cushion roller pedestal for absorption, which improves the impact resistance of coal feeder

Give the coal mecha the function of belt

The new type of armour belt is made of 16MN alloy or 45 # steel. Its structure is characterized by high weaving density, wear resistance, impact resistance, penetration resistance and good elasticity, etc. It has the functions of anti-deviation and anti-skid. It overcomes the fact that the old armour belt cabinet is easy to be filled with coal, which leads to the detachment of armour belt from the belt and the occurrence of slipping and belt breaking, which leads to high maintenance labor intensity and high cost. The inner lining belt adopts anti-deviation structure, and a trapezoidal bar is cast in the middle of the annular belt, which has strong anti-deviation function and greatly overcomes the previous problems of belt deviation. Using a combination of patent, patent number of the new nail and into a belt, improves the feeder low hit put the properties such as fracture overloading starting, distracted the tape by force of impact force and tear, avoids damage due to the large materials falling impact tape, reduced the amount of maintenance, prolong the service life of the adhesive tape to realize the simultaneous operation of a tape and tape, to prolong the service life of a belt feeder.

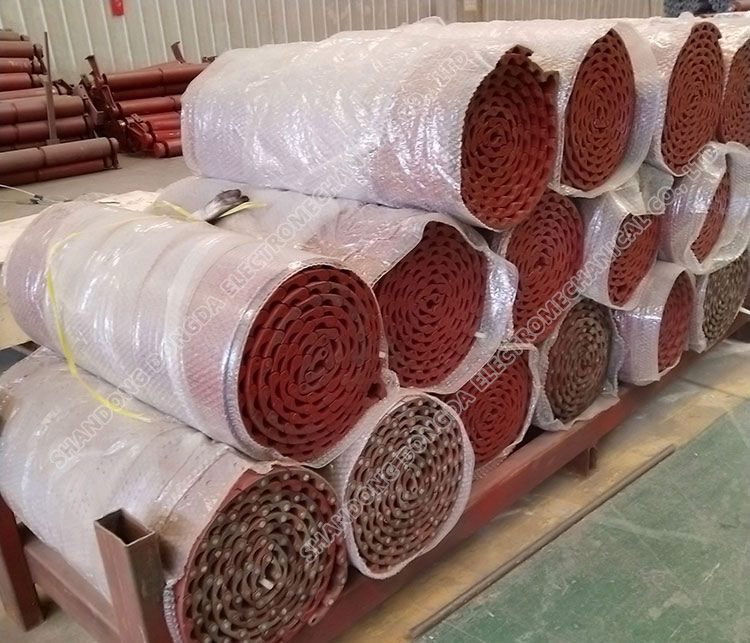

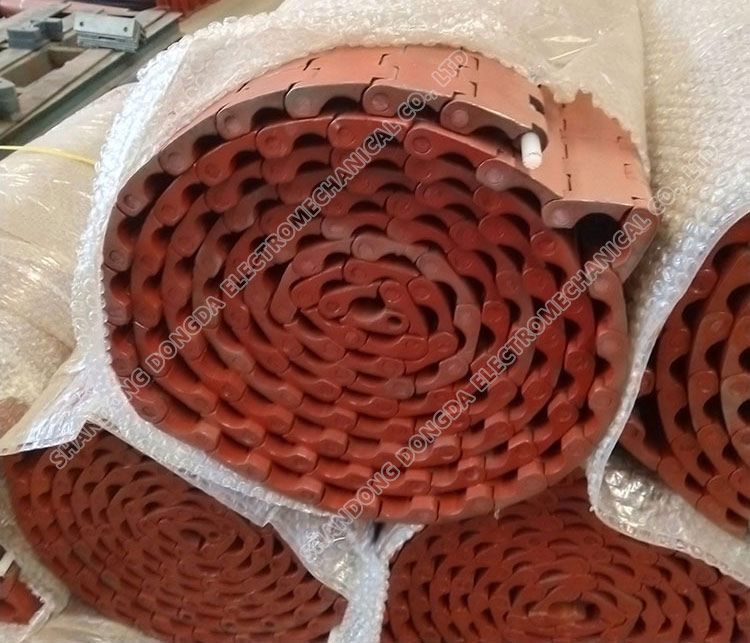

Bring physical drawings to the coal mecha
