Feeder roller

Introduction of feeder roller

The supporting roller of the feeder is an important part of the belt conveyor, which can support the conveyor belt and material weight. It accounts for 35% of the total cost of a belt conveyor and generates more than 70% resistance, so the quality of the idler is particularly important.

The role of the belt feeder roller is to support the conveyor belt and material weight. Roller operation must be flexible and reliable. Reducing the friction between the conveyor belt and the supporting roller plays a key role in the life of the conveyor belt, which accounts for more than 25% of the total cost of the conveyor. Although the idler is a small part in the belt conveyor and its structure is not complicated, it is not easy to make a high quality idler.

There are several criteria to judge the quality of idlers: radial runout of idlers; Flexibility of idlers; Axial channeling momentum.

Feeder roller classification

Roller of belt feeder is divided into rubber roller, ceramic roller, nylon roller and insulation roller according to the material.

There are mainly groove idlers, all kinds of parallel idlers, all kinds of adjustable idlers, all kinds of buffer idlers.

(1) Groove idlers include ordinary idlers, forward idlers, quick-change bearing idlers, hanging idlers, three-chain idlers, reversible idlers, variable groove Angle idlers, transition idlers, V-type idlers, etc.;

(2) Parallel idlers include ordinary idlers, comb idlers, forward idlers, steel rubber idlers, spiral idlers, etc.

(3) There are universal, friction-reversing idlers, strong idlers, cone idlers, spiral idlers, combined idlers, etc.

(4) Cushion idlers include spring plate idlers, buffer ring idlers, strong buffer idlers, adjustable elastic idlers, hanging idlers, etc.

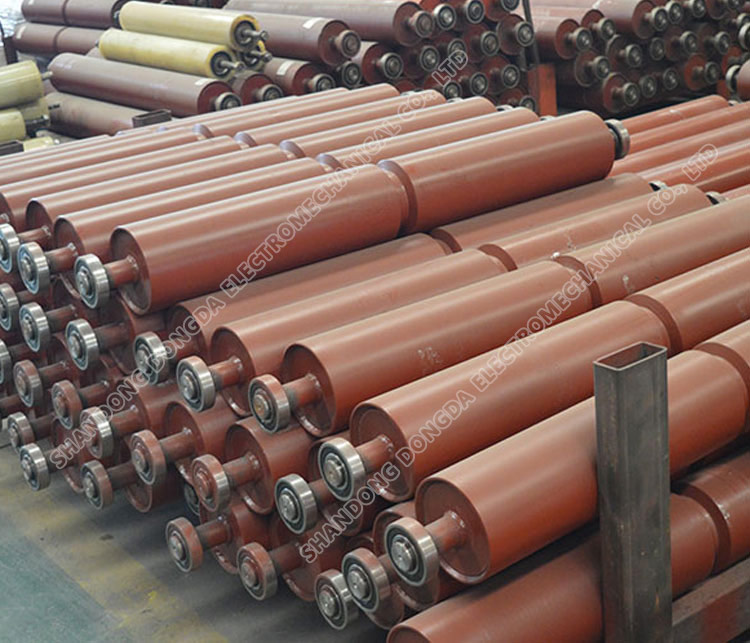

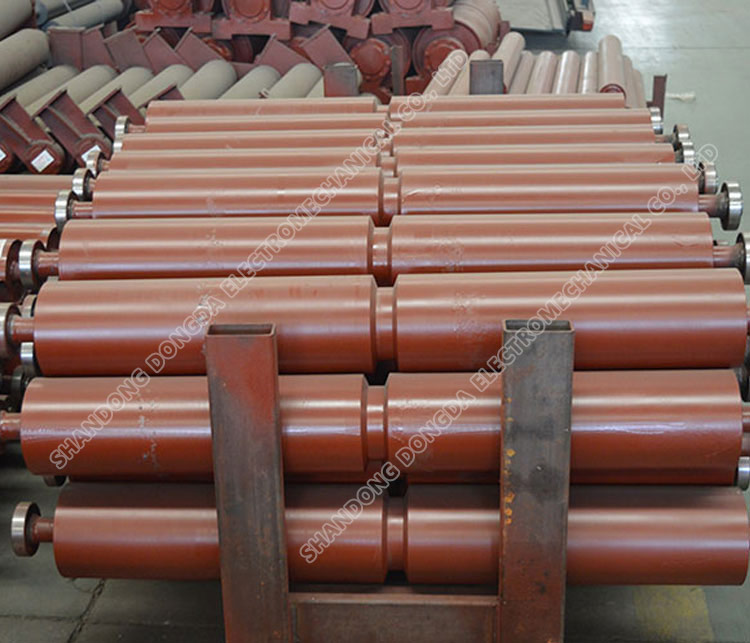

Physical drawing of feeder idler
