Introduction of GLL800/7.5/B chain coal feeder
GLL800/7.5 / B chain coal feeder is a kind of specific mining, iron and steel industry such as research and development of a new series of feed products, mining, iron and steel industry, coal, ore, half coal rock or other materials in the feeding, easy to cause damage to belt feeder, belt damage rate is higher, in particular, cause material can't realize the problem of feeding in the delivery. Aiming at the above problems, our company organized researchers to develop a chain feeder, which completely solved the above problems.
Gll800/7.5 /B Chain coal feeder Installation Instructions
1. The feeder can be installed separately or as a whole on site. During the separate installation, install the connection section at the warehouse opening, then install the guide groove, and then install the bottom plate and other components. In the overall installation, the connection section shall be installed in the bunker opening first, and then all other components shall be assembled. The overall hoisting and connection section shall be connected with bolts.
2. Conditions of use
A) Raw coal, ore and gangue of irregular shape in bulk shall be transported.
B) Working environment temperature -30 ℃~40℃
C) The composition of mine air shall meet the requirements of Article 100 of the Coal Mine Safety Regulations.
D) The working environment allows the existence of water flooding
Gll800/7.5 /s chain feeder parameters
Power KW: 7.5
Voltage AC V: 380/660/1140
Maximum feed t/h: 800
Maximum chain speed m/s: 0.6
Speed regulation: frequency converter variable speed continuously
Weight /kg: 3500
External dimension /mm (length × width × height) : 3200×1422×1752

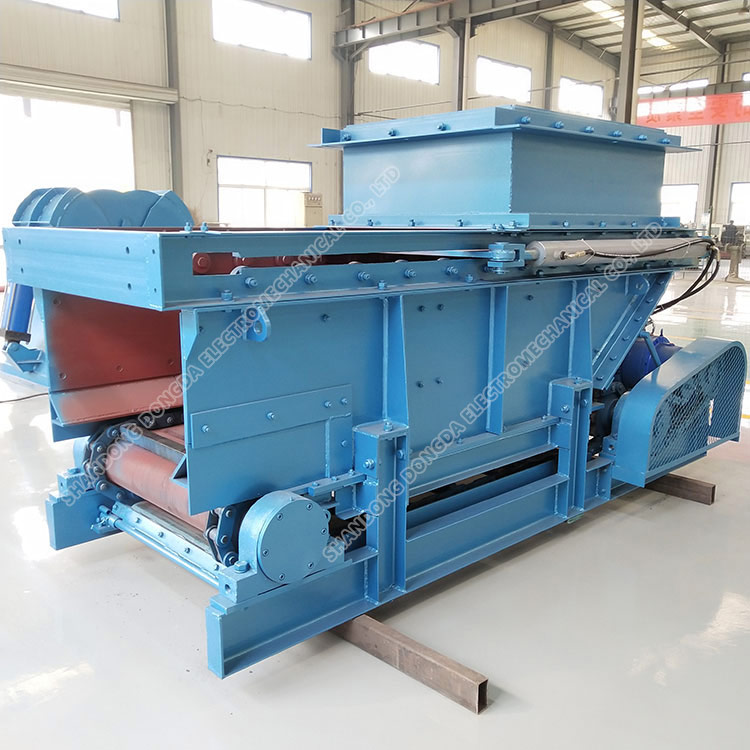

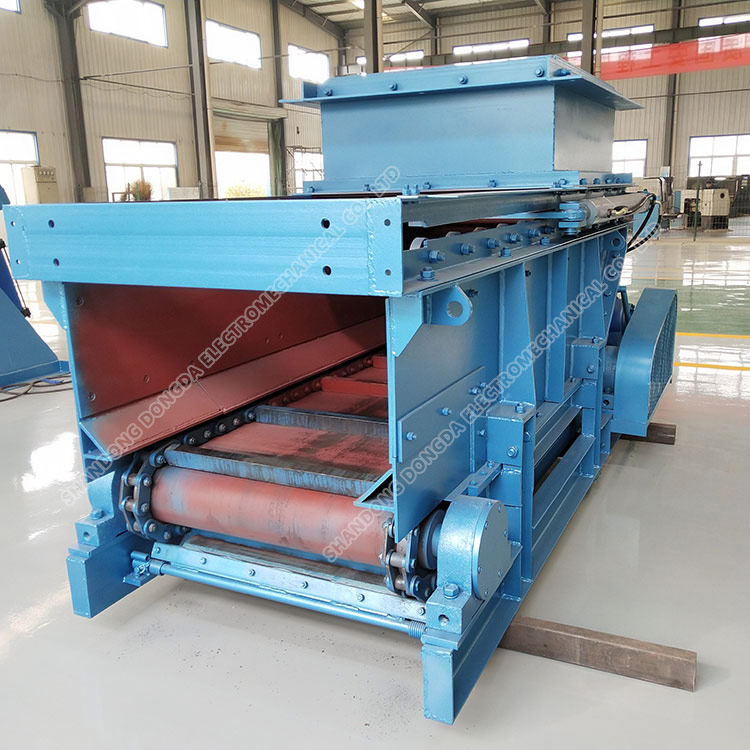

Gll800/7.5 /B Chain coal feeder
