GLL500/7.5 /S chain feeder

Introduction of GLL500/7.5/S chain coal feeder

GLL500/7.5 / S chain coal feeder is a kind of specific mining, iron and steel industry such as research and development of a new series of feed products, mining, iron and steel industry, coal, ore, half coal rock or other materials in the feeding, easy to cause damage to belt feeder, belt damage rate is higher, in particular, cause material can't realize the problem of feeding in the delivery. Aiming at the above problems, our company organized researchers to develop a chain feeder, which completely solved the above problems.

Commissioning description of GLL500/7.5/S chain belt feeder

Close the feed gate, check the installation status of components, and confirm that there is no problem, professional personnel should start the motor (the motor must have normal operation protection) under the condition of ensuring safety. After no-load operation for 30min, check the good operation status of each component, and then put it into normal use. The amount of feed is mainly adjusted by adjusting the operating speed of the feeder. In general, the gate is not used for the adjustment of the amount of feed. It is only used to prevent the falling of the material and the wind at the top and bottom of the feeder during the maintenance of the feeder.

In the normal work of the feeder, daily inspection and maintenance should be carried out, mainly on the operation and wear of parts. In case of abnormal problems, please contact the manufacturer in time

GLL500/7.5/S chain belt feeder parameters

Power KW: 7.5

Voltage AC V: 380/660/1140

Maximum feed t/h: 500

Maximum chain speed m/s: 0.6

Speed regulation: manual stepless speed change

Weight /kg: 2500

External dimension /mm (length × width × height) : 2960×1122×1752

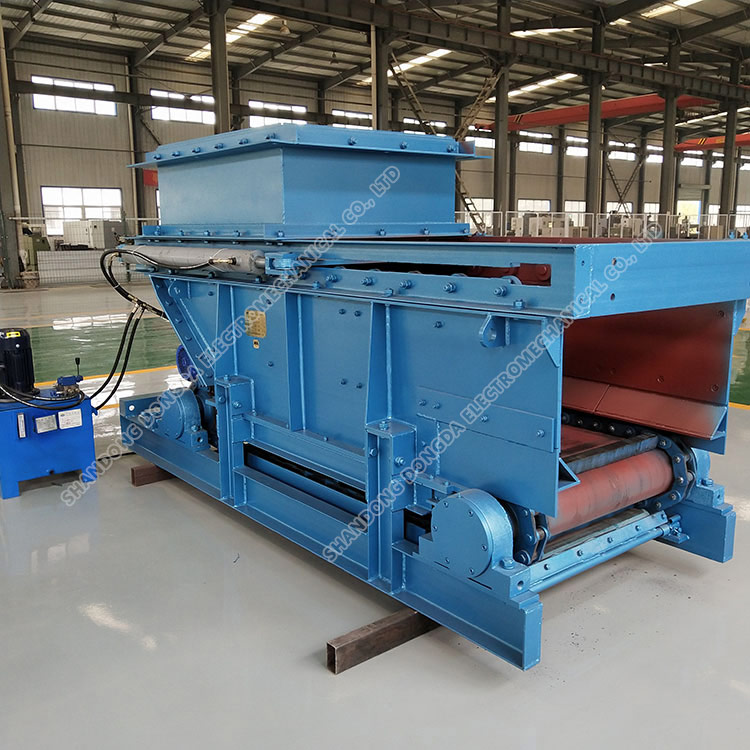

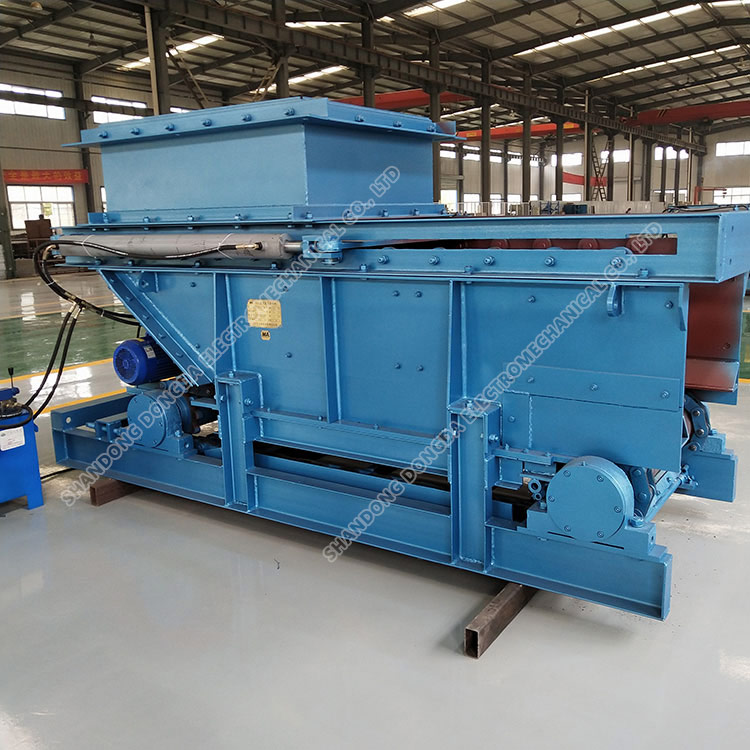

Gll500/7.5 /S Chain coal feeder physical drawing
