Details of GLD800/5.5/S weighing coal feeder
Gld800/5.5 /S weighing coal feeder is a new type of coal feeder developed for large production system with high yield and high efficiency, and the current feeder can no longer meet the requirements of coal mine production. Based on the K type reciprocating feeder, this product changes the reciprocating mechanism into conveyor belt mechanism, thus the feeding motion changes from sliding friction to rolling friction. The friction coefficient is greatly reduced, so that the power consumption is also significantly reduced. The feeding mode is changed from intermittent feeding to continuous feeding, and the feeding quantity is dynamically and continuously variable, so that the feeding system can meet the requirements of high efficiency, energy saving and environmental protection.
Technical parameters of GLD800/5.5/S weighing coal feeder
Specification: GLD800/5.5/S
Power kw: 5.5
Voltage V: 380 ~ 660
Adaptability to environment: explosion-proof type
Maximum feed t/h: 800
Maximum band speed m/s: 0.75
External dimension mm: 3280x1420x1718
Weight: 3500
Installation and maintenance of GLD800/5.5/S weighing coal feeder
The feeder can be installed separately or as a whole on site.
During the separate installation, the funnel frame shall be installed at the mouth of the bunker, then the box body, and then the bottom frame and other components shall be installed.
In the overall installation, the funnel stand should be installed at the bunker mouth first, and then after all other components are assembled, the overall hoisting and connection section should be connected with bolts.

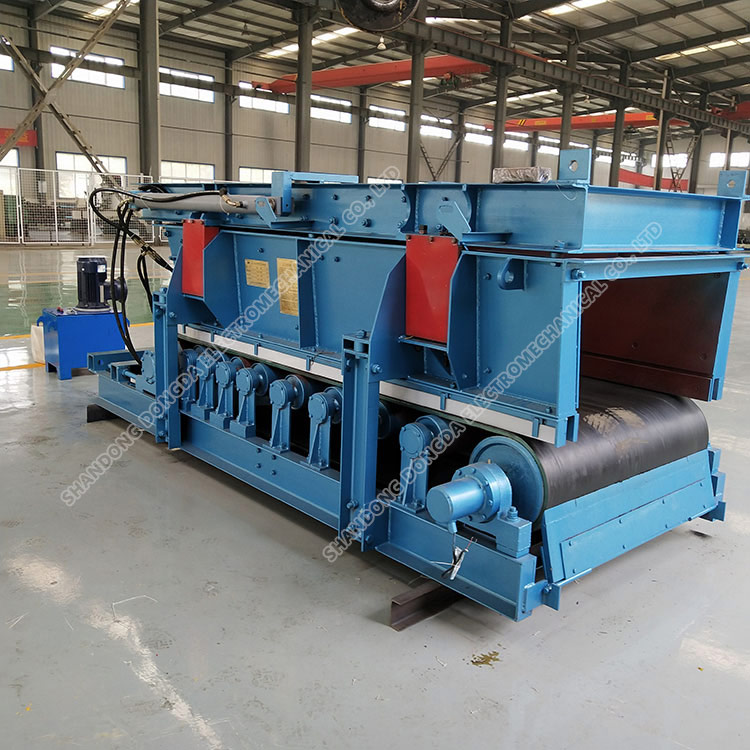

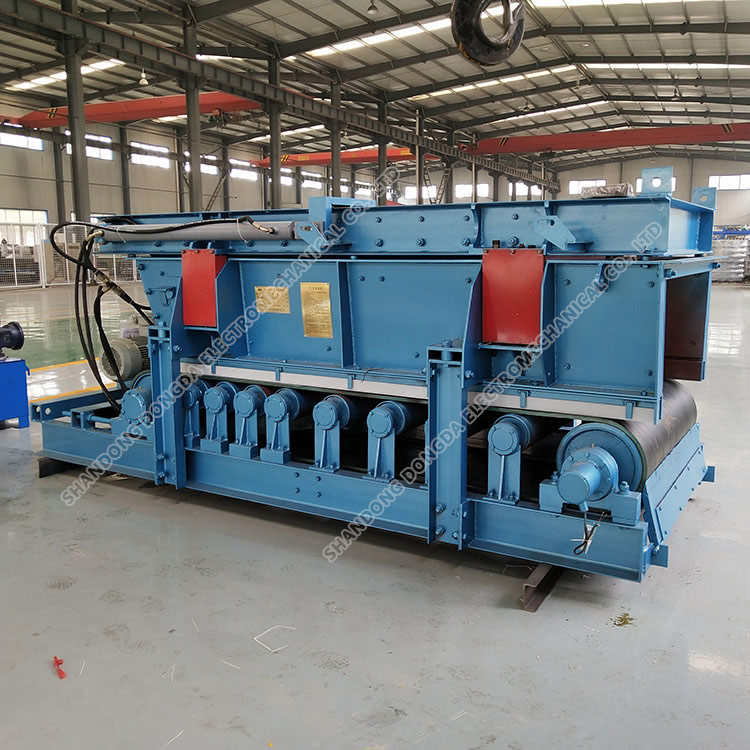

Real drawing of GLD800/5.5/S weighing coal feeder
