GLD1500/7.5 /S weighing feeder

Introduction of GLD1500/7.5/S weighing coal feeder

Gld1500/7.5 /S weighing coal feeder is a new type of coal feeder which is developed for the large production system with high yield and high efficiency and the current feeder can no longer meet the requirements of coal mine production. Based on the K type reciprocating feeder, this product changes the reciprocating mechanism into conveyor belt mechanism, thus the feeding motion changes from sliding friction to rolling friction. The friction coefficient is greatly reduced, so that the power consumption is also significantly reduced. The feeding mode is changed from intermittent feeding to continuous feeding, and the feeding quantity is dynamically and continuously variable, so that the feeding system can meet the requirements of high efficiency, energy saving and environmental protection.

Main features of GLD1500/7.5/S weighing coal feeder

1. Large feeding volume, small volume, light weight, convenient underground transportation and installation, can greatly reduce the amount of shaft engineering;

2. Large feeding adjustment range, easy adjustment (stepless speed regulation);

3. The moving part has low working resistance, low power consumption and long working life of the moving parts;

4. Stable operation, low noise, environmental protection;

5. Parts are universal, easy to install and maintain.

Notes for ordering of GLD1500/7.5/S weighing coal machine

1. The feeder has a variety of types combined with funnel and without funnel and with regulating gate and without regulating gate, such as with funnel and with regulating gate; With funnel, without regulating gate. The user should explain when ordering.

2. The voltage of this series of feeders is 380V and 660V. Please make sure the voltage standard and whether there is explosion-proof requirement.

3. There are two types of equipment installation: floor type and hanging type, and there are two types of structure: ordinary type and anti-channeling type. Please do not carefully consider when selecting the type; The equipment foundation bolts and hanging foundation are generally provided by the user.

4. Due to the different actual conditions on site, it is suggested that when you choose and order the equipment models and specifications, you should describe your requirements in detail and fully communicate with relevant professional and technical personnel, so as to reduce unnecessary troubles.

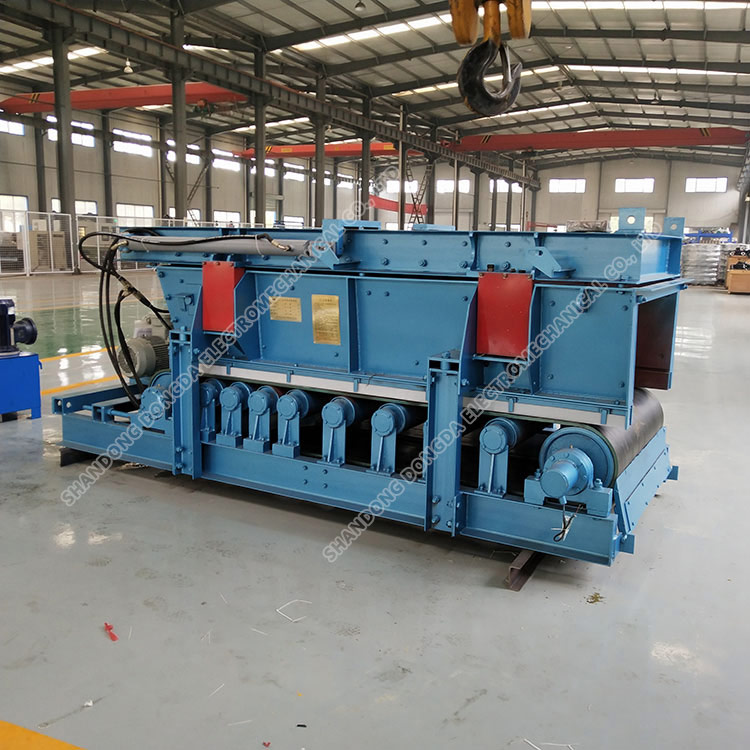

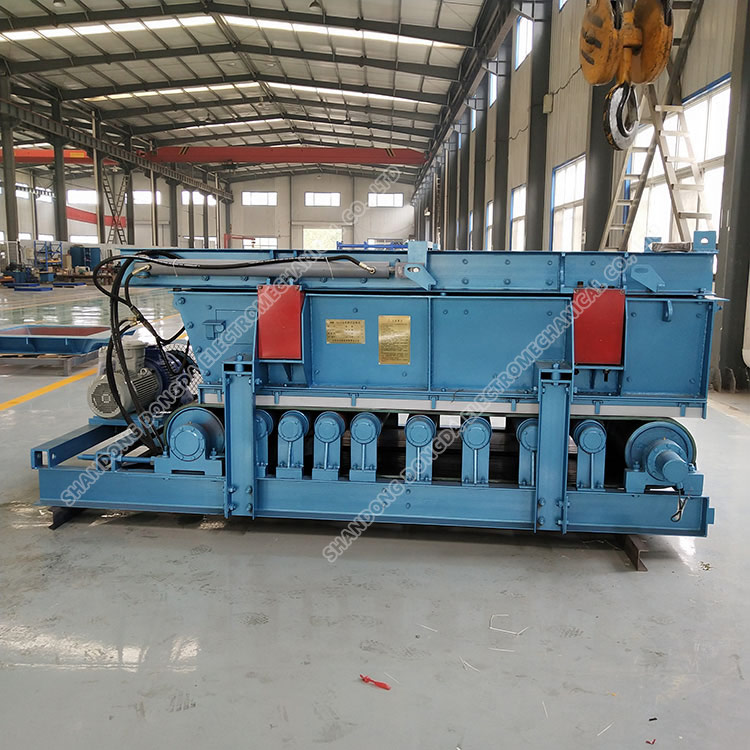

Real picture of GLD1500/7.5/S weighing coal feeder
