GLD4000/11 /S weighing feeder

Introduction of GLD4000/11/S weighing coal feeder

Gld4000/11 /S weighing coal feeder is suitable for the transfer of bulk materials in mines, mines, coal preparation plants, medium stations, coal transporting workshops, port bulk materials wharf, etc. It can transfer bulk materials uniformly through the silo to the belt conveyor or other screening equipment and storage devices. The transmission device of this series feeder is suspended, which can be directly arranged under the hopper for easy installation.

Main structure and working principle of GLD4000/11/S weighing coal feeder

This series of feeder is composed of bottom frame, driving platform, funnel, gate, crank connecting rod mechanism and roller, etc. See the structure diagram for details. Its transmission principle: when the motor starts, through the elastic coupling, reducer, crank connecting rod device to drag the inclined bottom frame on the roller for linear reciprocating motion, the material will be uniformly discharged to transport machinery or other screening equipment. This feeder has a variety of combination types, such as funnel, valve with adjustment and funnel, gate without adjustment, etc. When conveying hard materials, consider adding a liner at the bottom of the tank.

Parameters of GLD4000/11/S weighing coal feeder

Specification: GLD4000/11/S

Power kw: 11

Voltage V: 380 ~ 660

Adaptability to environment: explosion-proof type

Maximum feed t/h: 4000

Maximum band speed m/s: 1.50

External dimension mm: 4052x1622x2338

Weight: 5500

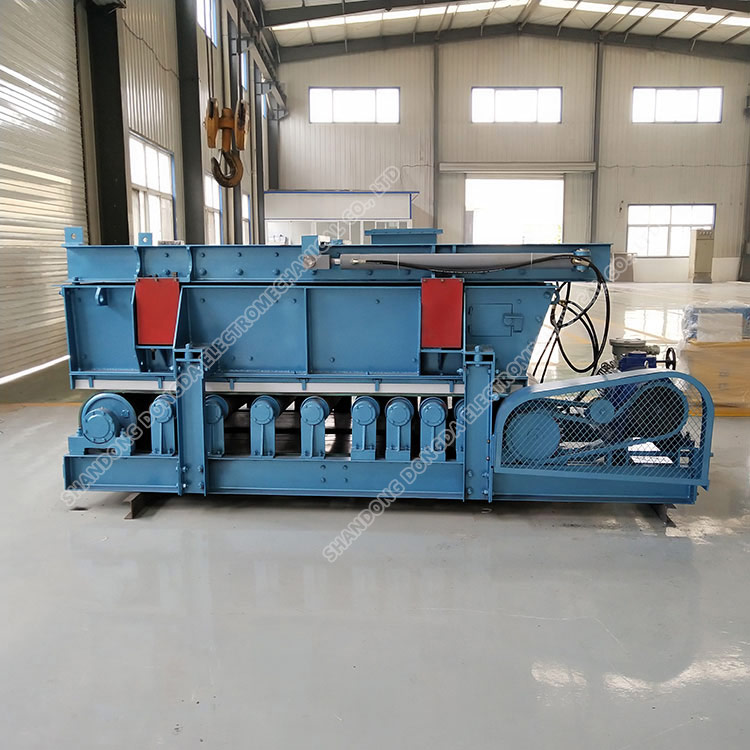

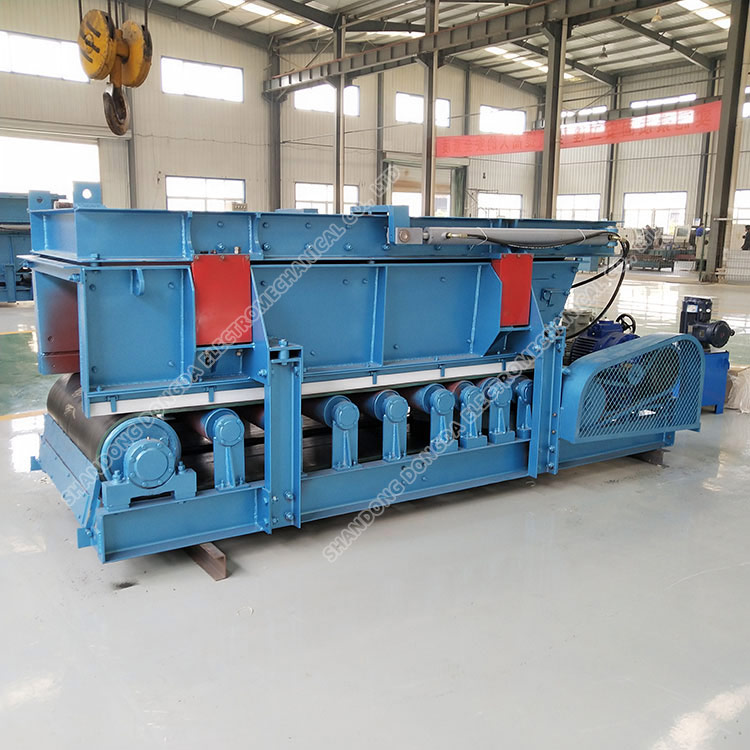

Real picture of GLD4000/11/S weighing coal feeder
