GLW2000/37/S reciprocating feeder

Glw2000/37 /S Reciprocating feeder product introduction

GLW series reciprocating coal feeder is used in coal mines and coal preparation plants to discharge raw or cleaned coal uniformly from coal silo and coal storage funnel, transfer to transportation equipment, or directly unload into screening equipment or other coal preparation equipment.

Working principle of GLW2000/37/S reciprocating feeder

Reciprocating coal feeder is mainly composed of funnel, box, gate, bottom plate, idler and driving device. The supporting roller is used to support the bottom plate. The bottom plate is driven by a driving device and moves in a regular reciprocating straight line on the supporting roller. The motion of the bottom plate in the direction of coal flow is called forward, while the motion of the bottom plate in the direction of coal flow is called reverse. When the floor is row will coal and coal feeder of the casing coal transporting to the front of the box, backplane retrograde, the casing of the coal is blocked by the ramp at the back of the box body, the relative sliding between the floor and coal, the coal of front end of the fall, as a result of floor reciprocating motion, so as to realize continuous evenly feed, this is the principle of reciprocating coal feeder.

Glw2000/37 /S reciprocating feeder parameters

Model GLW: 2000/37/S

Maximum feed t/h: 2000

Power: 37 kW

Crank speed R /min: 81

Weight: 4200

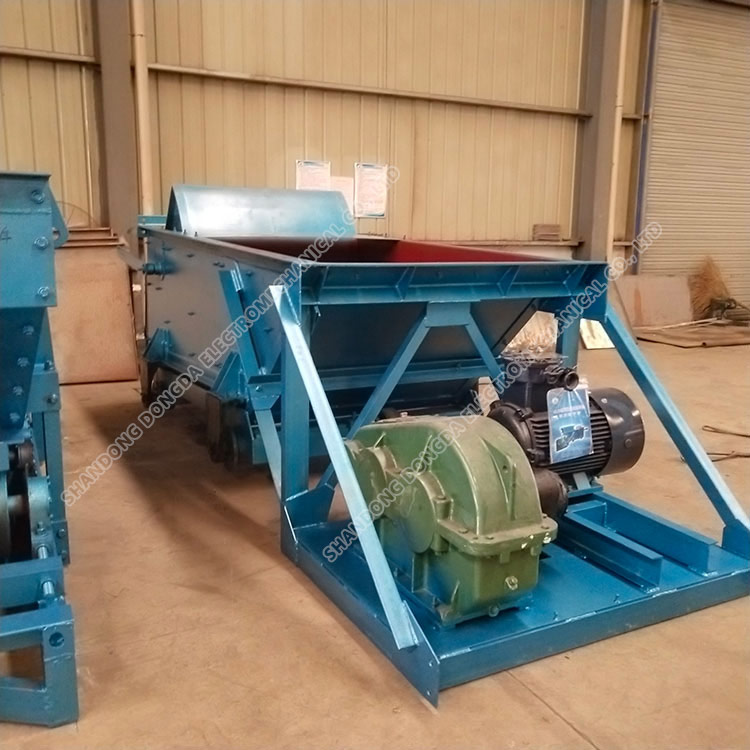

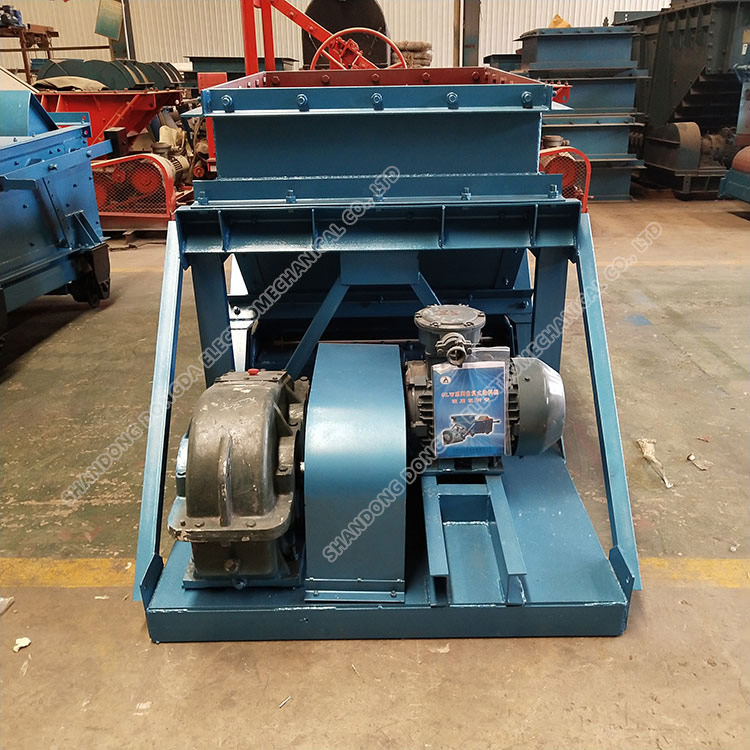

Physical drawing of GLW2000/37/S reciprocating feeder
