Glw590/18.5 /S Reciprocating feeder This series of feeder is composed of bottom frame, transmission platform, funnel, gate, crank connecting rod mechanism and roller, etc
Glw590/18.5 /S Reciprocating feeder
Glw590/18.5 /S Reciprocating feeder This series of feeder is composed of bottom frame, transmission platform, funnel, gate, crank connecting rod mechanism and roller, etc
Overhaul and maintenance of GLW590/18.5/S reciprocating feeder
1. Before the feeding machine is transported, enough raw coal shall be stored in the bunker to avoid direct impact on the floor when the coal is loaded into the bunker.
2. After monthly continuous work, check whether the parts are loose and other abnormal phenomena. If any abnormal phenomenon occurs, repair immediately.
3. The bottom liner in direct contact with the coal shall be repaired or replaced if its thickness is more than half of the original thickness.
4. All rotating parts shall be oiled once a month and checked once a quarter to observe the damage degree of bearings and seals and replace them in time when problems are found.
5. Maintenance of major components:
(1) Reduction gear
Check every six months, and clean or replace the lubricating oil on the rolling bearings and housing.
(2) Electric motors
According to the motor maintenance requirements.
Users' attention: lubricate moving parts regularly, check the running condition of each part, find out the reason in time and deal with the abnormal situation, and notify the manufacturer to deal with it if necessary; Close the gate when the empty warehouse is being repaired.
Glw590/18.5 /S Reciprocating feeder parameters
Specification: GLW590/18.5/S
Power kw: 18.5
Voltage V: 380 ~ 660
Adaptability to environment: explosion-proof type
Maximum feed t/h: 590
Maximum stroke of feeding chassis mm: 240
Crank speed R /min: 62
External dimension mm: 4740x1632x1543
Weight: 2880

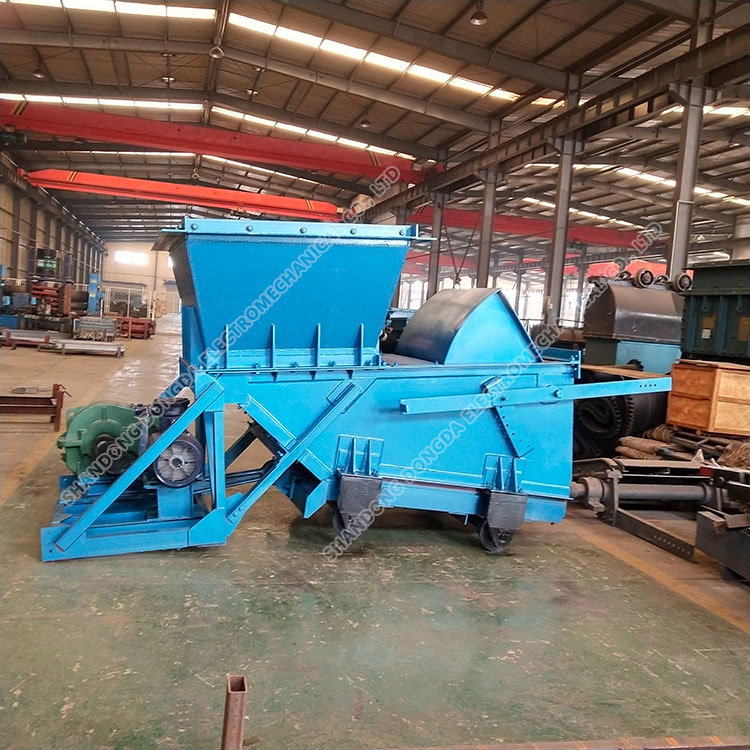

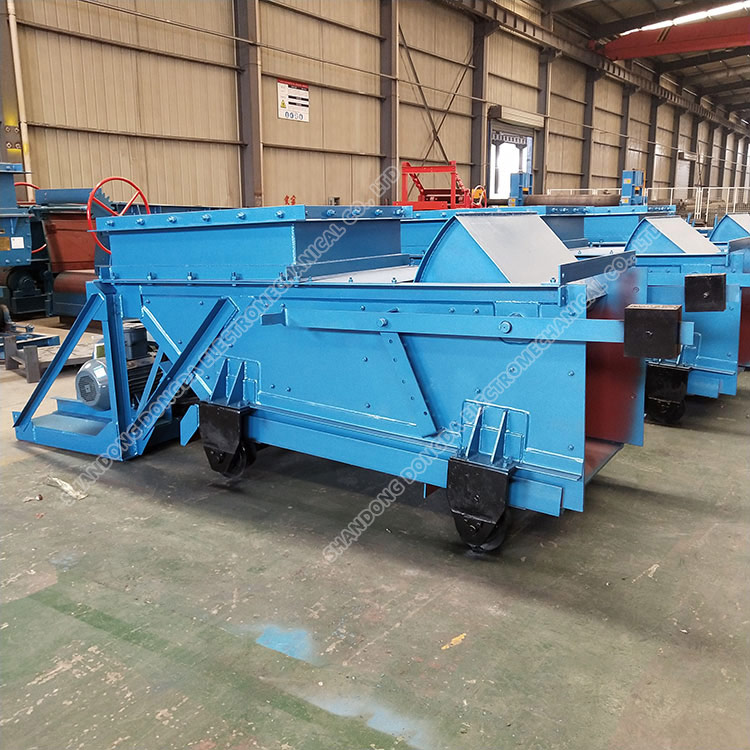

Physical drawing of GLW590/18.5/S reciprocating feeder
