Introduction of GLW330/7.5/S reciprocating feeder
Glw330/7.5 /S reciprocating feeder is suitable for the transfer of bulk materials in mines, mines, coal preparation plants, medium stations, coal transporting workshops, port bulk materials wharf, etc. It can transfer bulk materials uniformly through the silo to the belt conveyor or other screening equipment and storage devices. Realize the uniform feeding of bulk materials such as ore, sand coal and grain.
Installation and use of GLW330/7.5/S reciprocating feeder
1. Reciprocating feeder is fixed and installed under the opening of the storage bin. Before installation, the horizontal position should be determined and the rack and the opening should be bolted.
2. After the feeder is installed and in place, start the motor without load to make the feeder run without load. If no abnormal phenomenon is found within 20 minutes during empty operation, stop to check the temperature rise of the motor and reducer. If everything is normal, check again and tighten the relevant bolts and nuts, then restart and slowly open the bunker to make the coal flow into the feeder from small to large, so that the feeder can be put into normal operation.
3. When adjusting the productivity according to unloading requirements, pull out the boat at the crank position, loosen the nut, turn the position of the crank shell "1, 2, 3, 4" and fix it, insert the pin shaft, connect the crank and crank case, tighten the pin shaft and nut, and start after adjustment.
Glw330/7.5 /S Reciprocating feeder parameters
Specification: GLW330/7.5/S
Power kw: 7.5
Voltage V: 380 ~ 660
Suitable for environment explosion-proof type
Maximum feed t/h: 330
Maximum stroke of feeding chassis mm: 200
Crank speed R /min: 62
External dimension mm: 3913x1376x1486
Weight: 1980

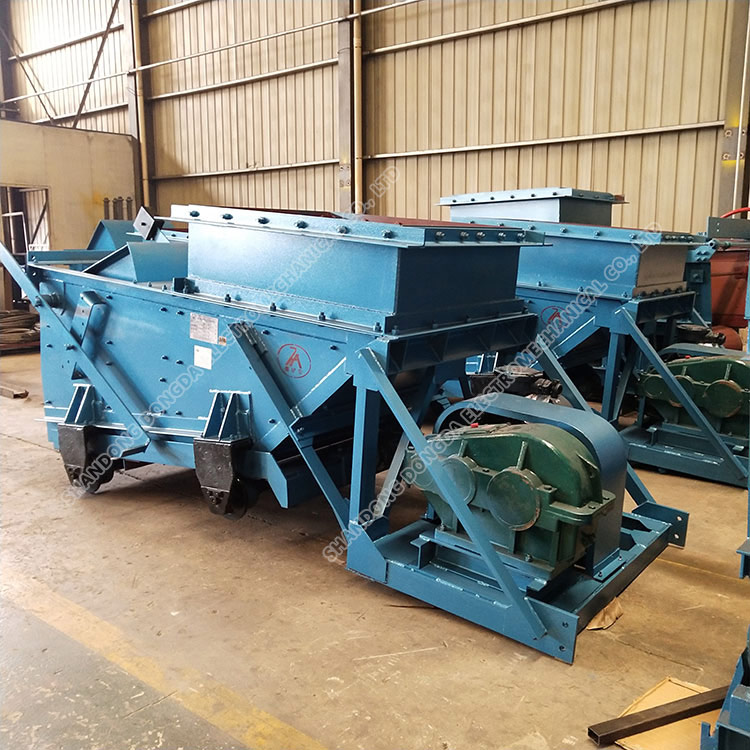

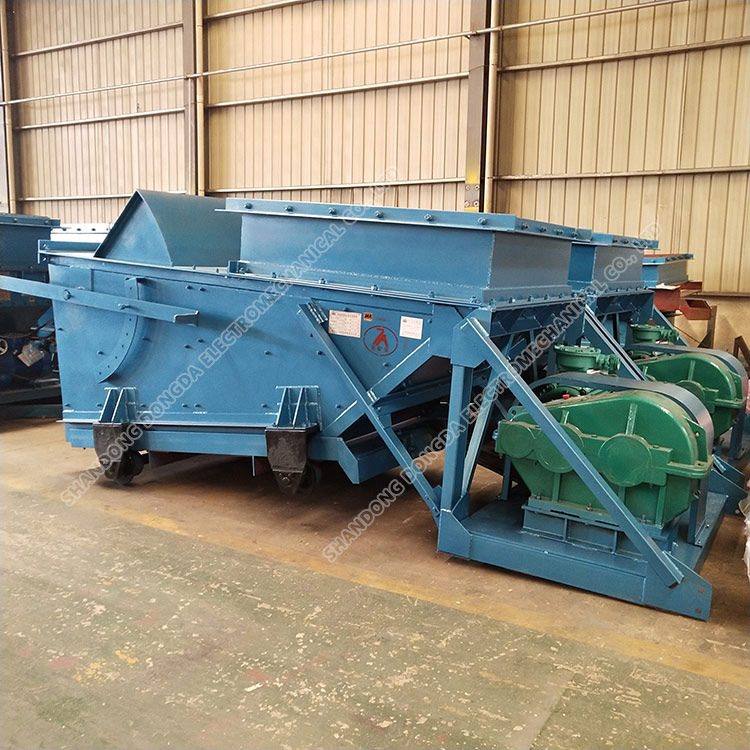

Glw330/7.5 /S Reciprocating feeder physical drawing
