FQW48-12/W mine pneumatic submersible pump

Fqw48-12 /W Mine pneumatic submersible pump introduction

Fqw48-12 /W mine pneumatic submersible pump adopts the mechanical product of coaxial connection between rotor and pump body, adopts vertical structure and lower pump type.

Mine pneumatic submersible pump is suitable for drainage work in places with dangerous explosion of gas and coal dust. It can be widely used in any operation surface of coal mine to transport underground water containing coal powder and sediment particles. It can be used safely and reliably and effectively improve the air quality on site.

Fqw48-12 /W Mine pneumatic submersible pump Safety precautions

1. When there is no water, the air source should be shut down immediately.

2. The working pressure shall not be greater than 0.70mpa.

3. If the fault is found, stop the machine and use it after normal maintenance.

Transport and storage of FQW60-20-K mine pneumatic submersible pumps

The products can be transported by conventional means. Reliable positioning and waterproof measures should be taken during transportation to prevent vibration and impact. Barbaric loading and unloading are strictly prohibited, and the products shall not be mixed with corrosive substances for transportation. The product shall be stored in an upright position in a ventilated and dry warehouse, and shall not be stored with corrosive substances.

Fqw48-12 /W Mine pneumatic submersible pump technical parameters

Pump model FQW48-12/W

Rated flow rate m /hF 48

Rated head m 12

Working pressure MPa 0.5

The gas consumption is m /min 8

The quality of 35 kg

Size 347 mm 462 x Ф shape

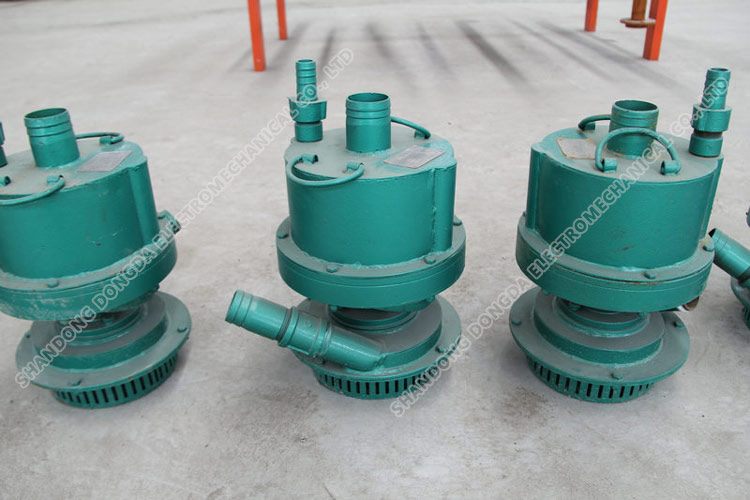

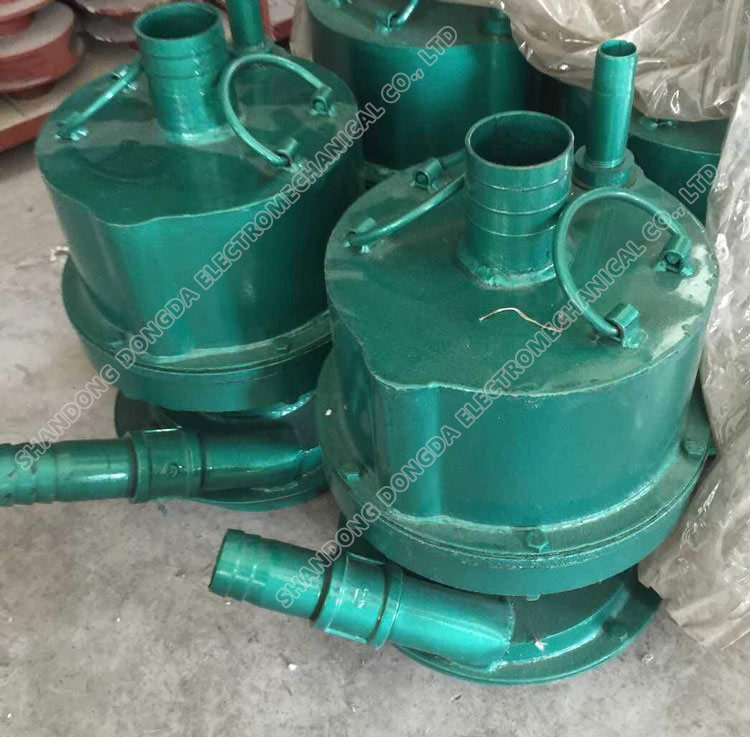

Fqw48-12 /W Mine pneumatic submersible pump physical drawing
