Bqg100/0.4 Pneumatic diaphragm pump

Introduction of BQG100/0.4 Pneumatic diaphragm pump

BQG pneumatic diaphragm pump can not only pumping flow of liquid, and can transport some not flowing medium, with self-priming pump, submersible pump, shielded pump, transport pump, mud pump and impurity pump transport machinery such as many advantages.

Bqg100/0.4 Pneumatic diaphragm pump matters needing attention

1, pneumatic diaphragm pump vibration is extremely slight, the general situation can not install foot bolts.

2. If dirt enters the compressed air, it will affect the normal start of the pump. It is recommended that the user install pneumatic triplicate.

3. When replacing the diaphragm, clean the wrist connecting rod and the lead sleeve in the pump without damaging the white tetrafluorin sealing ring. Install it as is, and then use it.

4, in suction easy to freeze medium, should be installed in the inlet of the pump valve, when stop with the pump, the valve will be closed, and then open the pump for a few minutes, the pump body medium so far so as not to cause the next difficult to open the pump.

Bqg100/0.4 Pneumatic diaphragm pump technical parameters

Model: BQG100/0.4

Rated flow rate L/min: 100

Discharging pressure MPa: 0.4

Rated air pressure MPa: 0.55

Maximum gas consumption m3/min: 0.65

Maximum diameter of passing particle mm: 6

Length × width × height (mm) : 400×340×489

Weight (kg) : 23.4

Inlet and outlet pipe diameter (in inches) : 1.5

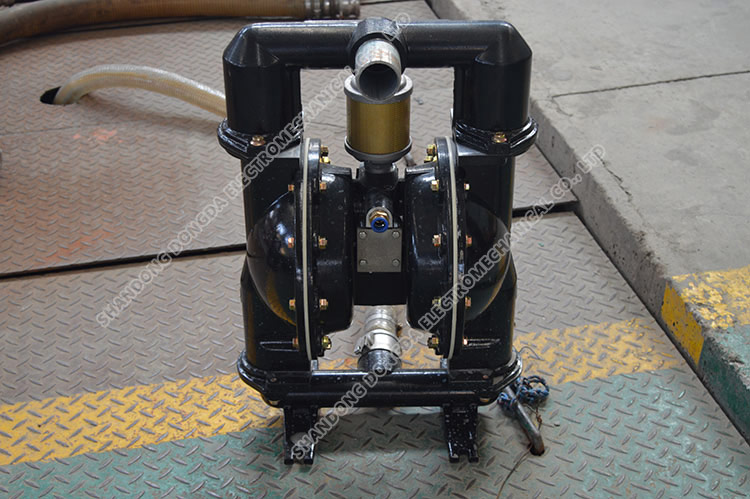

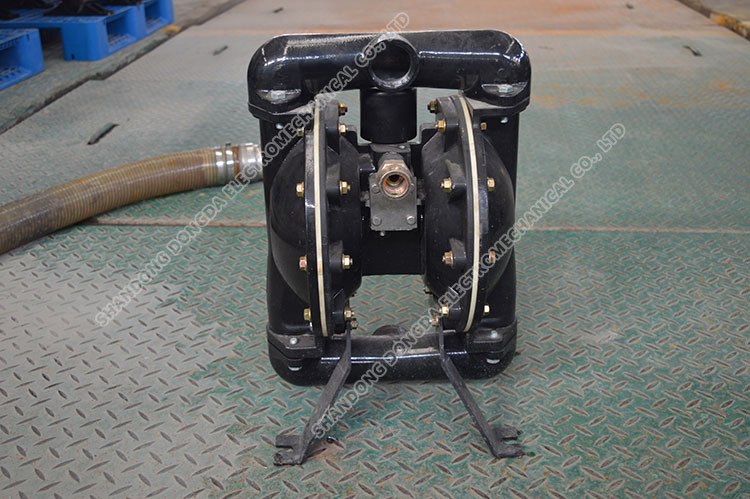

Physical picture of BQG100/0.4 pneumatic diaphragm pump
