Bqg125/0.45 Pneumatic diaphragm pump

Introduction of BQG125/0.45 Pneumatic diaphragm pump

Bqg125/0.45 Pneumatic diaphragm pump Pneumatic diaphragm pump is a new transport machinery, is currently the most novel pump class. Using compressed gas as the power source, it can pump out all kinds of putrid liquid, liquid with particles, liquid with high viscosity, volatile, flammable, highly toxic liquid. Pneumatic diaphragm pump has four materials: plastic, aluminum alloy, cast iron, stainless steel. Pneumatic diaphragm pump according to different liquid media respectively using butadiene rubber, neoprene, fluororubber, polytetrafluoroethylene, poly 46 ethylene. To meet the needs of different users. It is used in various special occasions to pump all kinds of media that can not be pumped by conventional pumps, and has achieved satisfactory results.

Bqg125/0.45 Pneumatic diaphragm pump technical parameters

Model: BQG125/0.45

Rated flow rate L/min: 125

Discharge pressure MPa: 0.45

Rated air pressure MPa: 0.55

Maximum gas consumption m3/min: 0.65

Maximum diameter of passing particle mm: 7

Length × width × height (mm) : 438×390×644

Weight (kg) : 31.2

Pipe diameter (in inches) : 2

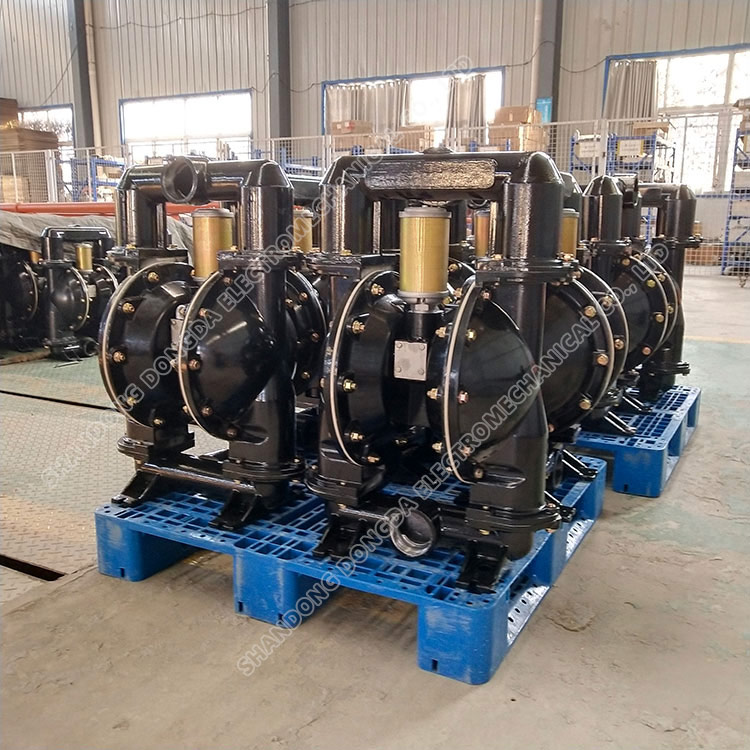

Bqg125/0.45 Pneumatic diaphragm pump physical drawing
