The GAD10 tension sensor

The GAD10 tension sensor is introduced

GAD10 (0 ~ 10 t) mine tension sensor (hereinafter referred to as the tension sensor) for mine intrinsically safe, GAD10 tension sensor is suitable for the coal mine gas and coal dust explosive gas environment, and integrated system of belt conveyor, used to measure the coal mine belt conveyor belt tension, prevent the belt from sliding and tension caused by tension decline of fault, belt tension deformation caused by the excessive protection for KHP type coal mine belt conveyor host tension sensor, when the belt conveyor belt tensioning degree overrun, the device will automatically open the tensioning winch to adjust.

GAD10 tension sensor technical parameters

1. The shell protection grade: Ⅰ P54.

2. Working voltage: Ui: DC12V (when used in underground coal mine, it needs to be powered by the original ampere power supply!) .

3. Working current: Ii≤50mA.

4. Output signal mode: frequency signal of 200 ~ 1000Hz.

5. Range: 0 ~ 10T.

6. Accuracy: ±3%.

GAD10 tension sensor weight: ≤3kg.

GAD10 tension sensor size: 178×96×42mm.

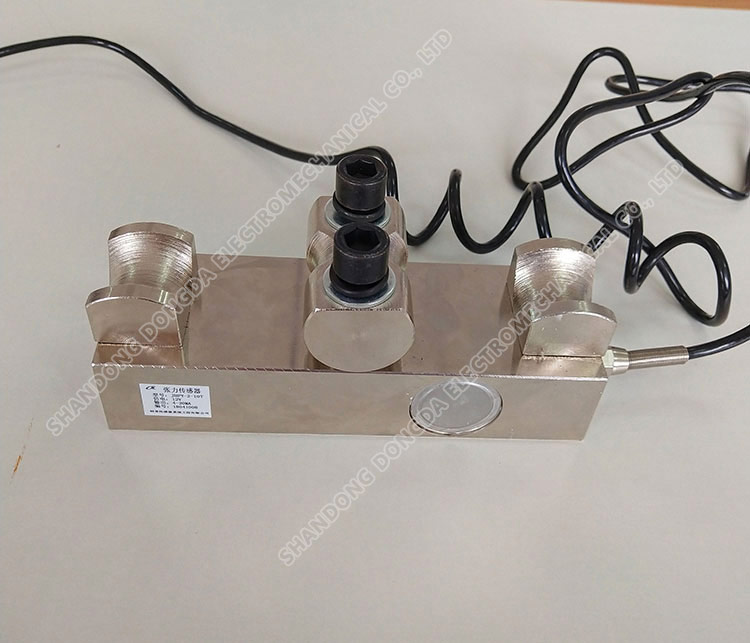

Physical picture of THE GAD10 tension sensor
