GSH5 speed sensor

GSH5 speed sensor introduction

GSH5 speed sensor is mainly used to monitor and protect the belt conveyor when the belt slips (stalling) or overspeed.

GSH5 speed sensor technical performance and parameters

Explosion-proof mark: ExibI;

Atmospheric pressure: 80-106kPa; The temperature of the surrounding medium is not higher than +40℃ and not lower than 5℃;

Relative humidity of surrounding air should not be greater than 95% (20±5℃);

Where there is no significant shaking or impact vibration;

In the absence of gases and vapors sufficient to corrode metals and damage insulation;

Allowable fluctuation range of grid voltage: -25% ~ +10%; Working voltage: DC+12V, current ≤80mA;

The cable length between the sensor and the main engine shall not exceed 500m;

It has 200-1000Hz frequency and relay contact output function.

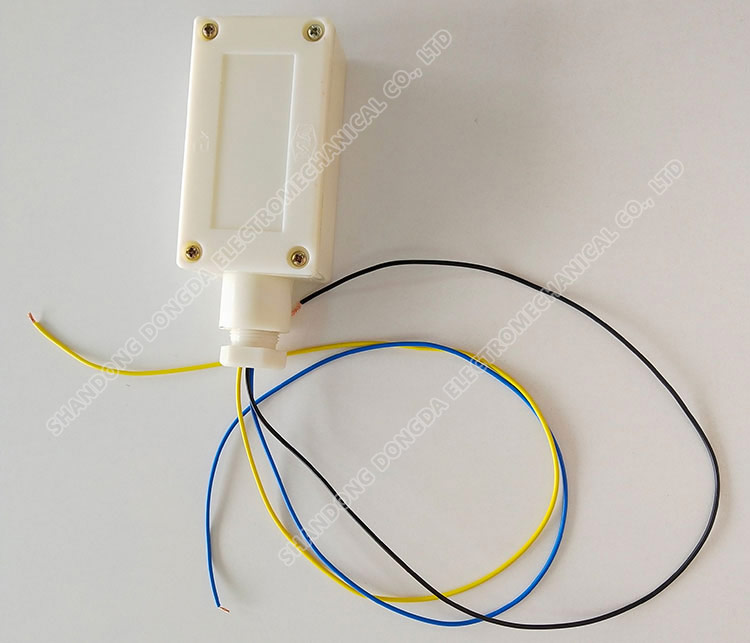

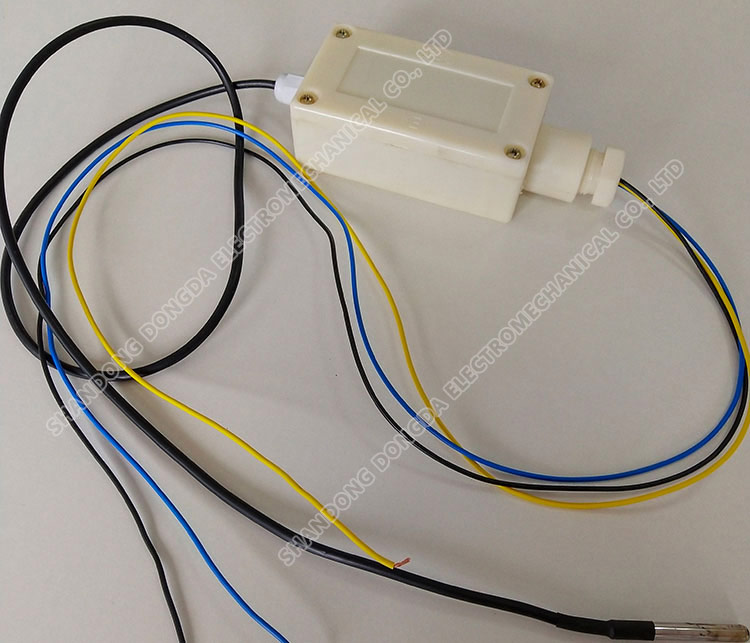

Physical view of GSH5 speed sensor
