Qyf10-20 pneumatic desilting and sewage pump can be used as a conventional means of transportation. In transportation, reliable positioning and waterproof measures should be taken ...
Qyf10-20 pneumatic desilting sewage pump transportation and storage
Qyf10-20 pneumatic desilting and sewage pump can be used as a conventional means of transportation. In transportation, reliable positioning and waterproof measures should be taken to prevent vibration and impact. Brutal handling is strictly prohibited, and transportation with corrosive substances should not be mixed. The product shall be stored in an upright position in a ventilated and dry warehouse, and shall not be stored with corrosive substances.
Qyf10-20 pneumatic desilting and sewage pump parameters
Model QYF10-20
Traffic 10 m after/h
20 lift m
Gas consumption m /min 5.0
Working pressure MPa 0.55
Suction cycle 6s
Emission cycle 6S
Mounting dimensions (length × width × height) mm 1830×782×890
Qyf20-20 pneumatic desilting sewage pump with random accessories
Suction pipe of 10m, 80mm or 100mm each (supplied by user)
Discharge pipe, each set is 10m, 80mm or 100mm (supplied by the user)
Suction head, 1 piece, stainless steel
Quick couplings (3 inches, 4 inches), 2 pieces, 80mm or 100mm
Quick connection (1 inch), 1 piece, 25mm

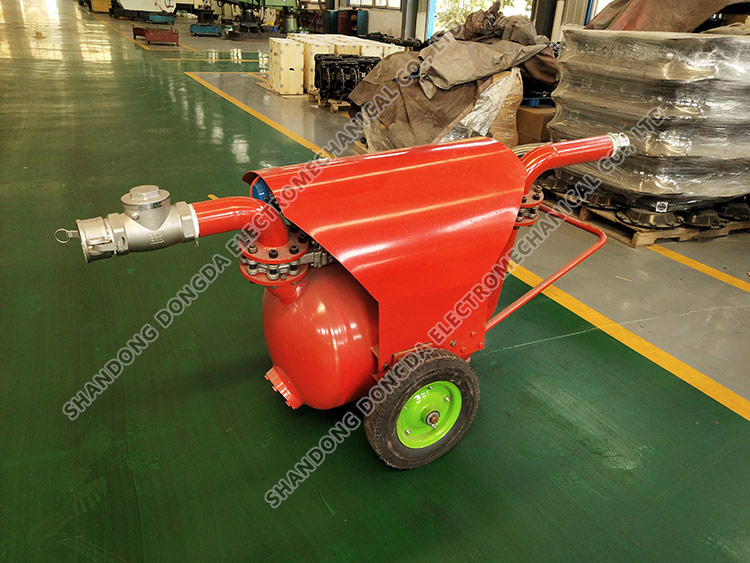

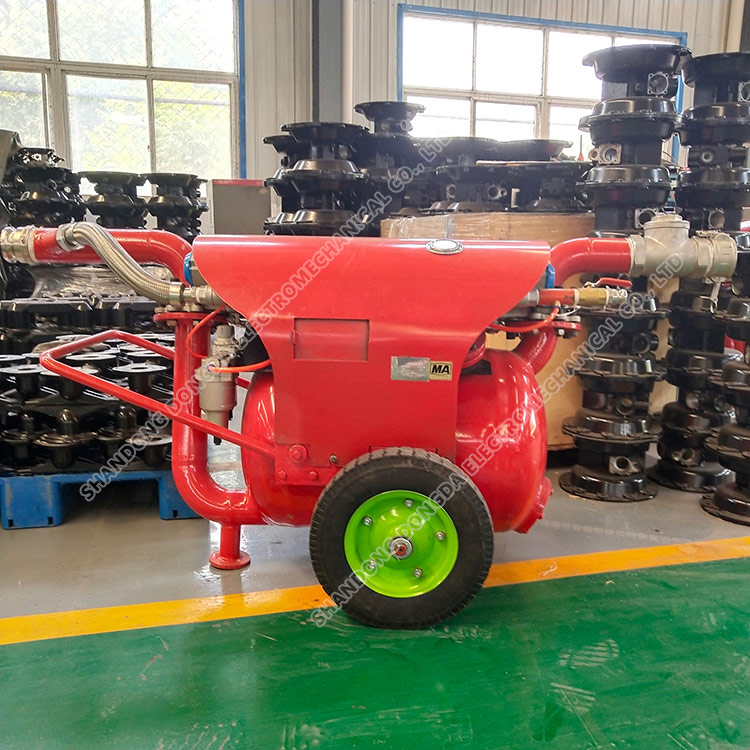

Physical picture of QYF10-20 pneumatic desilting and sewage pump
