The vehicle blocking device is an essential safety protection device in the process of rail transportation in coal mines. It is used in the transportation route of coal mines to control the positioning and stopping of the car, prevent the car from slipping away, separate the car and hook. The dynamic blocking device is a wheel blocking type. The device USES gas power to open and close the wheel blocking, which can conveniently stop the mining car, thus providing an effective guarantee for the safety of rail transport in coal mine. The product has been widely used in coal mining enterprises all over the country.
Pneumatic vehicle resistance, manual general (QZC), simple (QZCY), two-way resistance model (QZCS).
Pneumatic brake features
1. QZC series pneumatic stops are simple in structure, low in cost and convenient in installation and maintenance;
2. QZC series pneumatic brake pneumatic operation, operation labor-saving, safe and reliable.
Pneumatic stop works
QZC series pneumatic brake wheel block is designed on the outside of the track, the working principle is to pull the control valve of the air control box, the cylinder pushes the wheel block to open, when the car through, reverse pull the control valve of the air control box, the cylinder pushes the wheel block to close, so as to achieve the car's blocking stagnation.
Technical parameters of pneumatic brake
model |
Gauge ㎜ |
Round blocks the most displacement ㎜ |
Cylinder specifications ㎜ |
Rated pressure MPa |
QZC6 |
600 |
60 |
63×200 |
0.4~0.8 |
QZCY6 |
600 |
60 |
φ100 |
0.4~0.8 |
QZC9 |
900 |
60 |
63×200 |
0.4~0.8 |
QZCY9 |
900 |
60 |
φ100 |
0.4~0.8 |
QZCS6 |
600 |
60 |
φ100 |
0.4~0.8 |
QZCS9 |
900 |
60 |
φ100 |
0.4~0.8 |

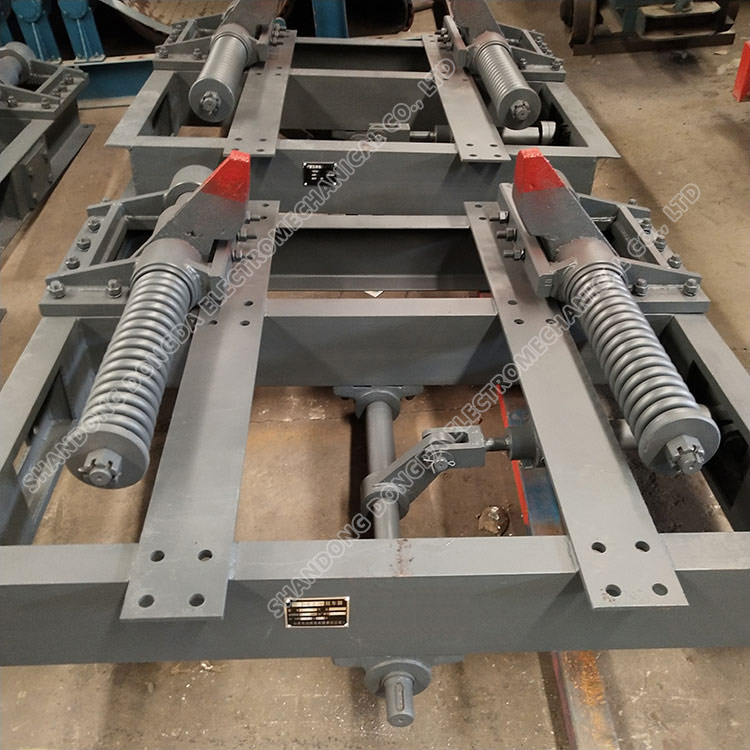

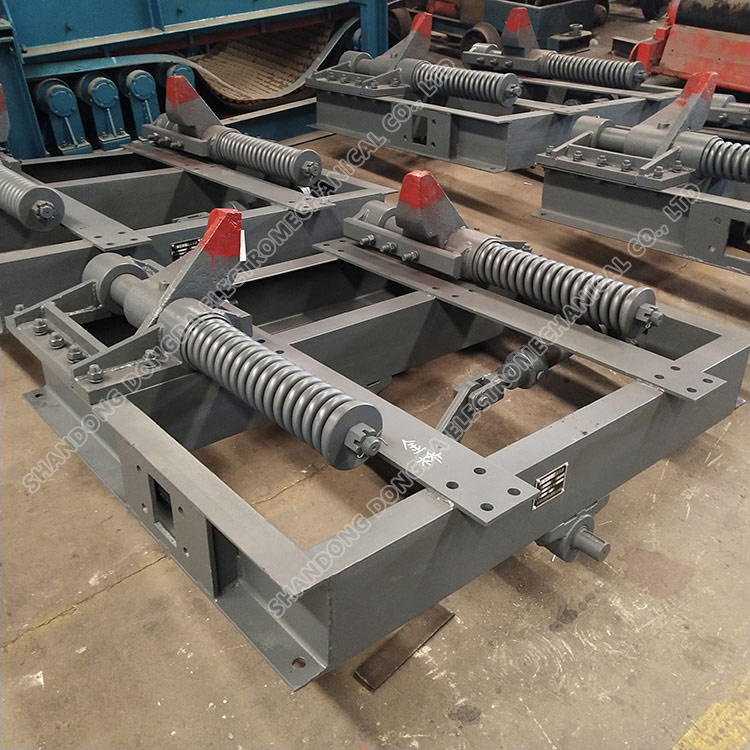

Real picture of pneumatic brake
