KXB127 Mine acousto-optic voice alarm

Overview of KXB127 explosion - proof and intrinsically safe language Acousto-optic alarm

KXB127 flameproof and intrinsically safe language acousto-optic alarm is mainly used in places containing explosive gases in underground coal mines. It can be used for striking points and acousto-optic alarm at the entrance, exit or three fork of transportation roadway, and also for acousto-optic alarm of shaft hoisting. KXB127 flareproof and native safe language acousto-optic alarm not only has the function of doting and light indication when doting, but also has the voice prompt, which makes it conform to the requirements of the latest coal mine Safety regulations.

KXB12 Mine natural security type sound and light alarm USES the environmental condition

A) Ambient temperature: 0℃ ~ +40℃

B) Average relative humidity: ≤ 95% (+25℃)

C) Atmospheric pressure: 80kPa ~ 106kPa

D) Place of use: coal mine Wells with explosive mixture of methane and coal dust, but without corrosive gas that destroys the insulation

Structural features and working principle of KXB12 mine intrinsic safety acousto-optic alarm

The alarm has two Chambers, separating the detonation chamber and the ampere chamber. The circuit adopts the integrated voltage comparator, the electro-optic coupler with high inspiration and modular design. Overall layout reasonable, small volume, light weight.

The alarm has two states, one is standby state; Second, alarm status. When standby, the green light is always on, the red light flashes when the alarm is given, and the loudspeaker sends out the language warning of "no pedestrians are allowed when driving". The operator presses the button and its normally open contact closes, the alarm internal conduction, at this time all in the road alarm is driven to send out the dot signal. The operator shall continuously operate the button for two or more times, the time interval shall not exceed 3 seconds (adjustable), the alarm shall change to the alarm state, and the alarm state shall be maintained for a maximum of 15 minutes (adjustable time). During the alarm process, the operator presses the button once, the alarm stops, and the alarm changes to standby state. The device can also be used in combination with an electric bell in the same way.

Technical parameters of KXB12 mine intrinsic safety acousto-optic alarm

Operating voltage :AC127V Operating current :≤0.3mA

Power supply voltage fluctuation range: 75% ~ 110%, its value is 95V ~ 140V.

Sound loudness: not less than 85dB.

Optical signal

A Non-alarming state: green light signal is always bright.

B Alarm status: flashing red light.

C Optical signal visible distance Optical signal visible in the dark at 40m.

Input control signal

The input control signal is a non-native ampere (127V) normally open mechanical contact.

Ampere parameters: U0:12.5V I0:1A C0: 1 F L0:0.1mA

KXB12 mine natural security type sound and light alarm installation

Users can choose mine rubber-sheathed cable with an outside diameter of 10mm according to their needs. Wiring is shown in the figure.

Precautions for installation;

The power lead is connected to terminals A, B, C and D;

Fault analysis of KXB12 Mine intrinsic safety Acousto-optic alarm

Silent, lightless should check the emergency power supply of the insurance pipe or replace the control panel.

Red light flashes without language alarm, speaker lead is broken, speaker is bad or language board is bad.

Long-term alarm control panel is broken.

KXB12 Mine natural safety type sound and light alarm after-sales service

Ensure the supply of spare parts and circuit boards.

Be responsible for site instruction installation.

Free maintenance or replacement of quality problems within one year after sale.

Note for KXB12 mine natural security type sound and light alarm

The power supply used matches the rated voltage on the nameplate.

Only after the power has been disconnected during maintenance can the flameproof cavity cover be opened.

When not in use, the inlet nozzle must be plugged as required.

other

The company guarantees that the products from the factory meet the design requirements, high quality, safe and reliable system operation, and at the same time provide quality after-sales service.

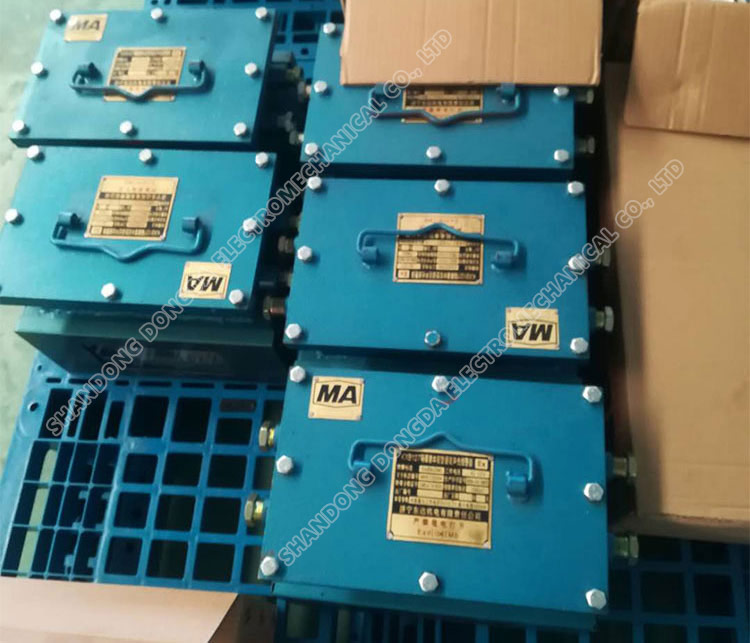

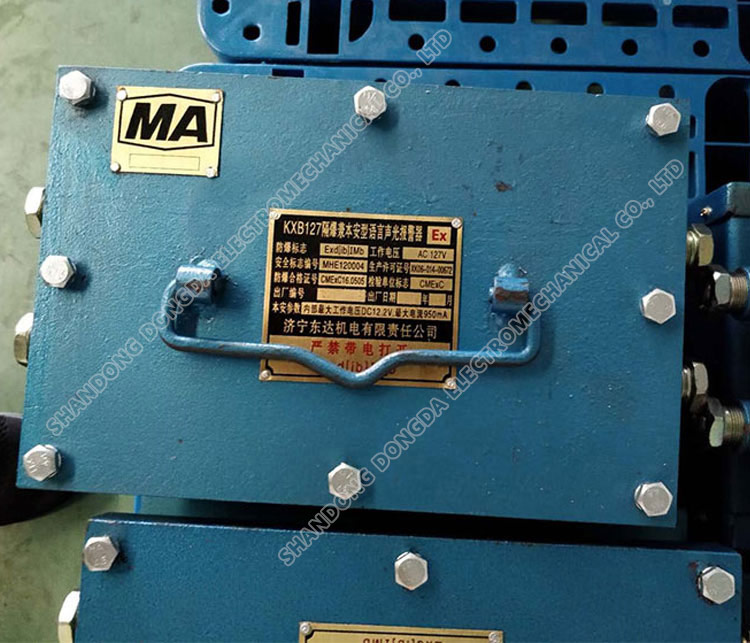

KXB12 Mine natural safety type sound and light alarm physical picture
