KXH127 mine acoustooptic signaler

Overview of KXH127 Mine Acousto-optic signalers

KTZ127 mine flameproof and intrinsically safe communication acousto-optic signal device (hereinafter referred to as the signal device), mainly used in underground coal mine workplaces containing coal dust and explosive gas, suitable for use as signal contact for inclined roadway lifting, belt transportation, etc., and also used as a direct telephone between winch house and wellhead. Carrier intercom communication is realized through power connection. The sound and light signal is realized by the mine moisture-proof loudspeaker and the high brightness light emitting diode.

Application environment of KXH127 mine acousto-optic signaler

A) Ambient temperature: 0℃ ~ +40℃

B) Average relative humidity: ≤ 95% (+25℃)

C) Atmospheric pressure: 80kPa ~ 106kPa

D) Place of use: underground coal mine with explosive mixture of methane and coal dust, but without corrosive gas that destroys insulation.

Features of KXH127 mine acoustooptic signal apparatus

1. A) The product has simple wiring, easy maintenance and convenient use;

B) Frequency modulation power carrier is adopted for communication, with strong anti-interference ability, long transmission distance and good communication effect.

2. The product movement adopts epoxy encapsulation, with long service life of damp proof and vibration proof.

3. Signal transmission: Press the button of Dot transmission in the flameproof chamber of this station to send audio contact signal (dot) to each station of this station and on-line.

4. Signal reception: Each online station can receive the signal sent by any one through the power line carrier, emit sound signal ≥85dB through the loudspeaker, and emit optical signal visible within 30 meters through the led.

5. Simplex intercom: without changing the existing explosive-proof signal device and power connection mode in coal mine, each unit realizes simplex intercom communication function through power line carrier.

Main technical parameters of KXH127 mine acousto-optic signal apparatus

working voltage :AC127V Working current: ≤200mA.

The voltage fluctuation range is 75% ~ 110% of the rated voltage.

Loudness of stereo: no less than 85dB.

Voice level: not less than 80dB.

The communication distance between two signals is ≤2000 meters.

Optical signal: The optical signal is red, and the intensity of the optical signal is visible at 30m in the dark.

intrinsic ampere parameters: Intrinsic ampere working voltage: DC 10V intrinsic ampere maximum current: 330mA

Operation principle of KXH127 mine acousto-optic signaler

1. Working principle

A. Function of sending acoustic and optical signals

As shown in the figure, A# and B# are power terminals and C# are signal contact terminals. Press the dot button and all the online C# and B# terminals form a power loop through optocoupler. The integrated block IC1 generates electricity, sends sound signal to the speaker and makes the LED light up, and sends 200kHz carrier acousto-optic signal through the power line.

B. Receiving function:

The power supply of the receiver integrated block IC3 is obtained through transformer B1. When the talk button is not pressed, the receiver integrated block IC3 is electrified. Sound and optical signals sent by other stations are coupled with the power carrier through the coil L of transformer B2.

C. Simplex communication function:

Press the talk button, IC2 gets power, and the voice is sent to IC2 by the microphone MC. The amplified audio signals are coupled through L2 and L1 of transformer B2, and the audio signals induced by L1 coil are sent to other stations through the power line carrier, realizing simplex communication function.

KXH127 mine acoustooptic signaler installation

1. Installation:

A. open the front cover of the flameproof chamber, and connect the wiring terminal a # and B# to the power supply 127V through the fuse. C# to other stations C#, core grounding.

B. It can be used after the system is connected to the power supply (4x1.5 square root rubber sheathing cable is used).

C. If the wiring is wrong, there will be noise or clicking sound. At this time, just switch one of the Wiring A# and B#.

2. Use:

A. Signal sending (rBI) : Press the signal button, and sound and optical signals will be issued simultaneously by the station and the online stations.

B. Call: Press the call button and send the language into the receiver. The voice sent by the receiver can be heard by the other party. Release the call button to accept the voice from other stations.

Notes for use of KXH127 mine acousto-optic signaler

A. Read this manual carefully before installation and use.

B. During maintenance, the model, specification and electrical parameters of components in the circuit shall not be modified.

C. It is strictly prohibited to open the cover and maintain it live.

KXH127 mine acoustooptic signaler is used for transportation and storage

This product is suitable for railway transportation, automobile transportation and water transportation. It can be stored in the environment with temperature -10 ~ +40℃, relative temperature no more than 90% (20+5) ℃ and no rain or snow.

other

The company guarantees that the products from the factory meet the design requirements, high quality, safe and reliable system operation, and at the same time provide quality after-sales service.

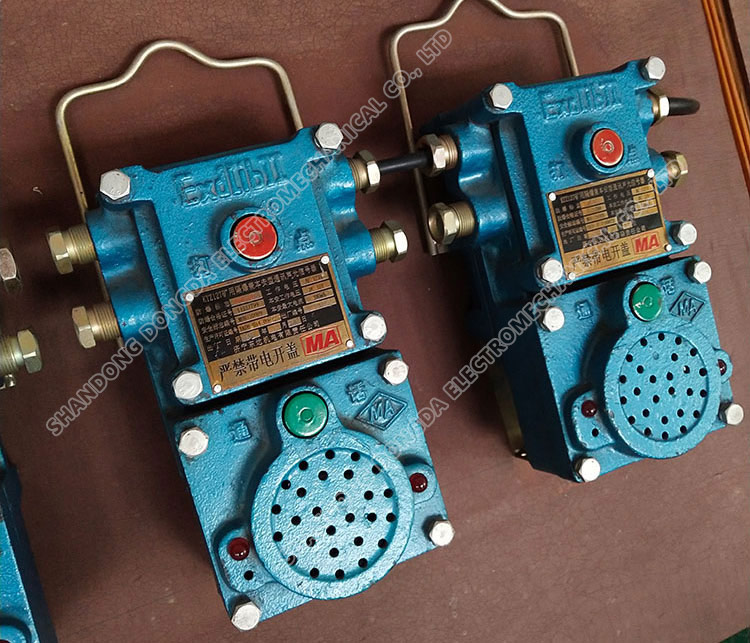

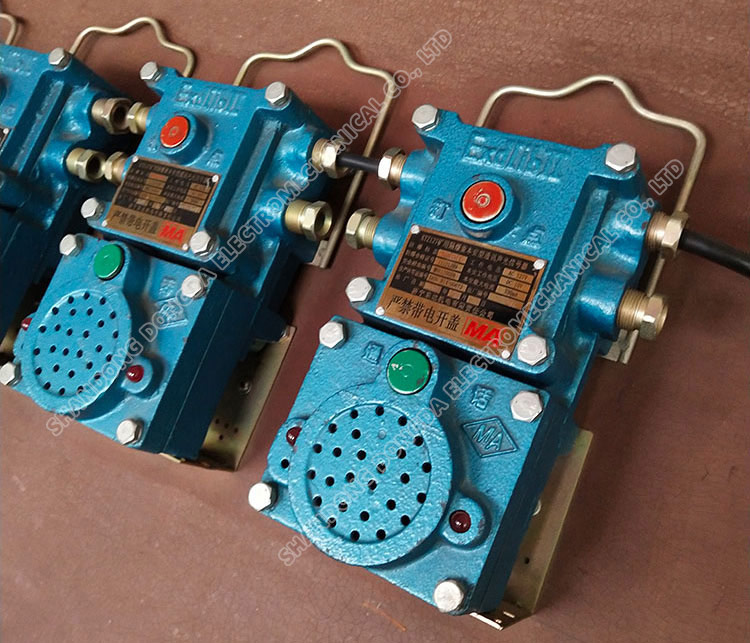

Physical picture of KXH127 mine acousto-optic signaler
