GZY hydraulic weighing sensor

Use of GZY hydraulic weighing sensor

GZY hydraulic weighing sensor is the main sensing equipment in skip loading weighing system, which can output the corresponding current signal according to the loading amount, and then display the loading weight and control the work of loading equipment through electrical equipment. This product has the advantages of superior technical performance, complete specifications and models, good reliability, stable work and high output precision.

GZY Hydraulic weighing sensor performance

1. This product belongs to the large-tonnage weighing sensing equipment, and the single point weight repeating cover range can reach 100 tons, which can meet the current domestic needs. This product can be combined with electrical display equipment and loading and unloading control equipment to form loading and unloading system automation, and automatically control the lifting skip load.

2. The weighing sensor has good linearity, stability and reliability, large tonnage, waterproof and explosion-proof, no leakage, and is resistant to harsh environment. 18053725291 has no harmful radiation, and can be used in the environment of inflammable and explosive, wet and dusty, large temperature difference and large impact load.

3. It can automatically absorb load impact force, and the measurement and control output precision is 0.1 (0.1%).

4. It can bear large lateral force and will not cause measurement error.

5. Various specifications and models can be used for cost safety structure.

6. It can be used in multi-point weight measurement system.

7. Simple installation and debugging, easy to use and safe.

How the GZY hydraulic weight sensor works

The liquid is sealed in a special container that is easy to be deformed. The object to be weighed is placed on the container. When the weight of the object increases, the liquid pressure in the container also increases. The liquid pressure can be converted into a current signal output by the pressure transmitter.

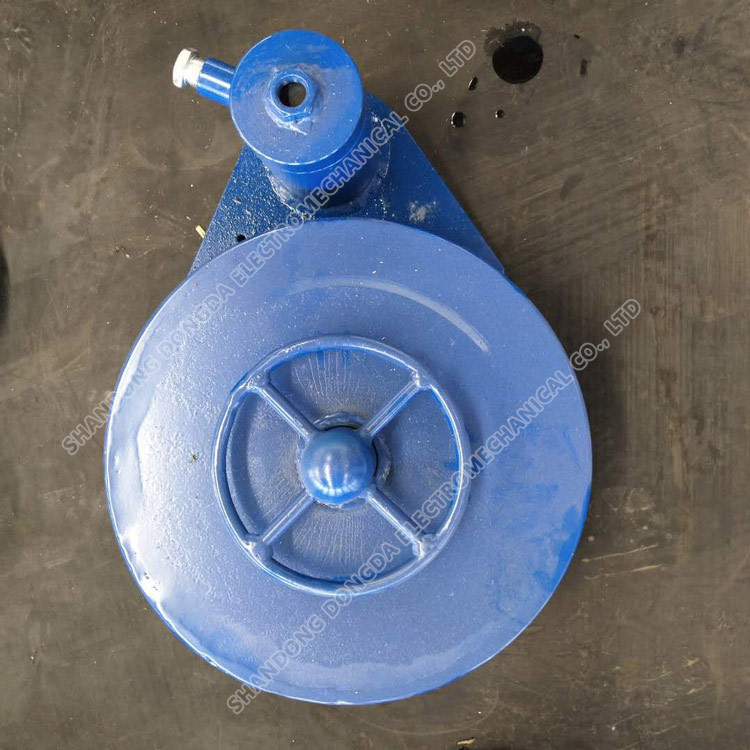

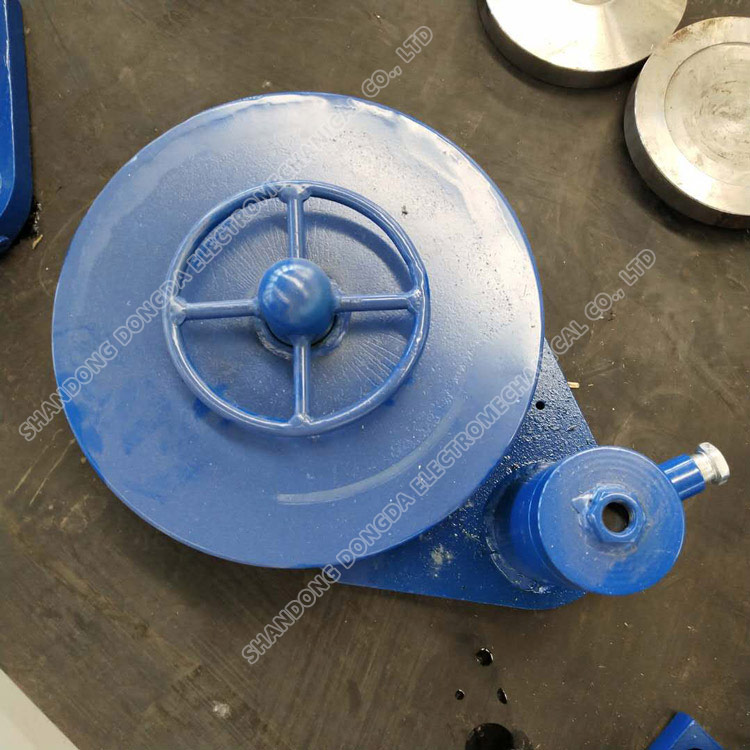

GZY hydraulic weighing sensor product physical picture
