ZYJ type water supply self-rescue device

Overview of ZYJ type water supply self-help device

The pressurized air self-rescue water supply system is one of the more important six emergency evacuation systems in the underground coal mine. In order to prevent the occurrence of disaster in the underground, ensure the victims to drink safe and hygienic drinking water in a bad environment.

The mine pressure air self-rescue water supply system adopts the PVC alloy capillary ultrafiltration membrane with the international leading level, the filtration precision reaches 0.01 micron, can thoroughly filter out the bacteria, virus, colloid, rust and other impurities. Unique principle of vertical cross flow filtration, throttling dirt can be discharged when using ordinary tap water, filter core is not dirty and blocked.

Mine pressure air self-rescue water supply system is a new product integrating isolated gas breathing device and drainage device, which has a constant air supply quantity, a constant water supply and a manual stable pressure regulating device.

ZYJ type water supply self - rescue device structure

On the basis of the pressurized air self-rescue device, the mine air self-rescue water supply system has been added, such as inlet pipe, water filter, water pressure gauge, drainage device (multiple groups), etc. The same box, the installation board, the total intake pipe, the total intake pipe is made of stainless steel. Six groups of water supply and six groups of gas supply (can be designed according to requirements).

Working principle of ZYJ type water supply self-help device

In addition to breathing fresh air directly through self-suction filter mask, municipal tap water filtered by water purification filter can also be obtained in the mine pneumatic self-rescue water supply system. Fresh air and water are connected by spring hose, which can be expanded and retractable freely and easy to use.

Mine air pressure save water system of water purification currently circulating water filter cartridge filters using advanced import filter, PP cotton to various impurities, rust, sludge, jelly, suspended solids, organic matter, residual chlorine and other substances to filter for many times, and the bacteria, different color, odor material, tiny pollutants effectively dispel, adsorption material, water quality sweet and tasty, greatly improved the water quality of purified water.

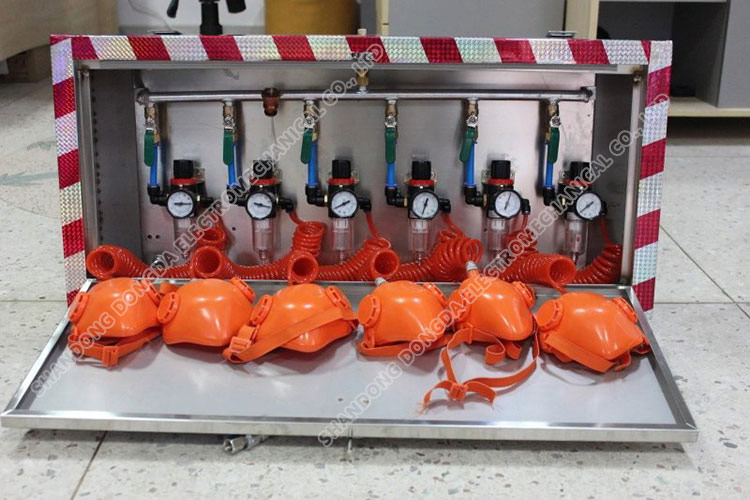

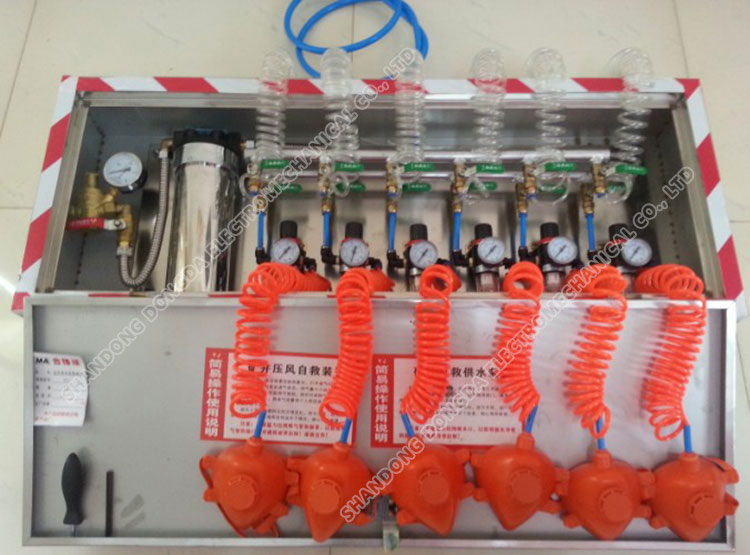

Physical picture of ZYJ type water supply self-help device
