QWZC9 pneumatic horizontal brake

Introduction to QWZC9 pneumatic horizontal brake

QWZC series pneumatic horizontal sluice is an essential safety protection device in coal mine rail transportation. QWZC series pneumatic horizontal brake USES gas power to close the horizontal brake, relying on spring force to open the horizontal brake automatically. QWZC series pneumatic horizontal brake is always in a direction of the harvesters open blocking car state, block this direction harvesters, to prevent the harvesters from slipping, when this direction harvesters need to go through the horizontal brake, use pneumatic operation to close the horizontal brake release harvesters, when the harvesters through, QWZC series pneumatic horizontal brake automatically open. Without operation, harvesters running in the opposite direction can pass through QWZC series pneumatic horizontal brake and automatically open after passing. QWZC series pneumatic horizontal brake is characterized by simple structure, convenient installation and maintenance, labor-saving operation, safety and reliability. QWZC series pneumatic horizontal brake has been widely used in coal mining enterprises all over the country.

QWZC9 pneumatic horizontal brake application

QWZC series pneumatic horizontal brake is mainly applied to coal mine track transportation route, there is QWZC6 and QWZC9 type, QWZC6 type is applicable to 600 mm track gauge, QWZC9 type is applicable to 900 mm track gauge. Our company can also manufacture special pneumatic horizontal brake according to user requirements.

Main features of QWZC9 pneumatic horizontal brake

1. Simple structure, low cost, easy installation and maintenance

2. Gas power, anti-interference, safe and reliable

3. High sensitivity, good coordination and labor-saving operation

QWZC9 pneumatic horizontal brake structure characteristics and working principle

QWZC series pneumatic horizontal brake is mainly composed of horizontal brake, driving shaft, rocker, torsional spring, cylinder, air control box and other parts. QWZC series pneumatic brake rely on the spring force to make horizontal brake remain the state of car to open a harvester direction resistance, blocking a harvester direction, slip, to prevent the car from moving gas control box control valve, cylinder piston rod under the action of compressed air, stretched out, and at the same time, drive the transmission mechanism of the rocker shaft rotation, close brake, harvesters, release when harvesters by moving control valves, pneumatic box under lying open automatically brake. On the opposite direction running harvesters without operation can be through the pneumatic horizontal brake, after the automatic opening.

QWZC9 pneumatic horizontal brake installation, commissioning, maintenance

1. Before installation, all parts shall be inspected for defects caused in transportation and storage, and parts with defects shall not be used. The pneumatic horizontal brake is connected with the rail through i-steel, adjusted and tightened firmly, the cylinder is fixed on the I-steel through the mounting plate, the front and rear pin shafts of the cylinder are connected, the air control box is fixed at the designated position, the high-pressure air inlet pipe and the air inlet pipe of the cylinder are connected, and the cylinder protective cover is installed after debugging.

2. Adjust and turn the air control valve and test run the cylinder to make the horizontal brake close smoothly. Remove the air control valve and the horizontal brake automatically opens.

3. Maintenance of the rotating parts of pneumatic horizontal brake should be filled with lubricating oil regularly, once per shift. Regular maintenance of pneumatic horizontal brake, such as bolts loose, support loose, rotating part of abnormal wear, timely repair or replacement. Regularly carry out anti-rust treatment on each part.

QWZC9 pneumatic horizontal brake technical parameters

Model: QWZC9

Mm gauge: 900

Rated working pressure MPa: 0.4 ~ 0.8

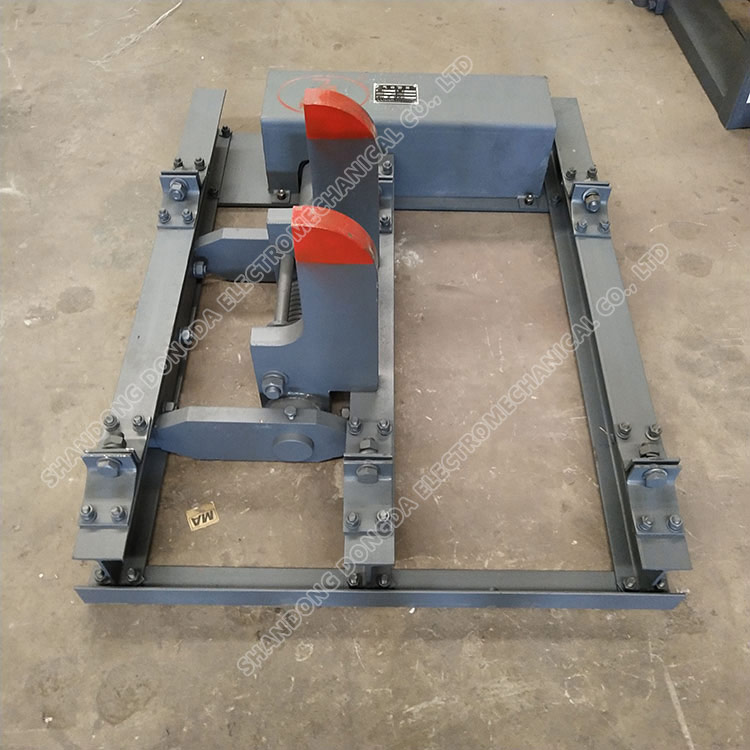

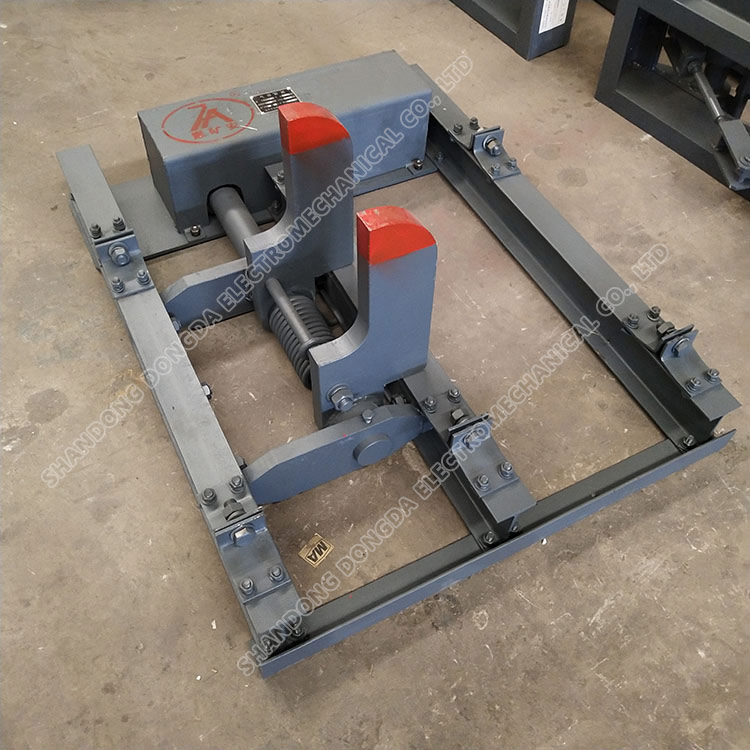

Real picture of QWZC9 pneumatic horizontal brake
