GCG1000 dust concentration sensor for mine

GCG1000 dust concentration sensor for mine

GCG1000 mine dust concentration sensor according to the WS/T206-2001 public determination method of pm10 in air, light scattering method design, to absorb the advanced dust technology at home and abroad, using infrared laser and import of photomultiplier tube, floating dust will enter a dark room under the infrared laser, under the condition of dust properties must dust the dust scattering light intensity is proportional to the mass concentration, the scattering light intensity is converted into electrical signals, K value can be directly calculated by preset dust mass concentration. Its characteristics are: rapid and accurate measurement, high sensitivity, stable performance, strong load capacity, light channel is little affected by dust pollution, through the preset K value can measure the mass concentration of all kinds of dust, and can set the dust concentration exceeding the standard alarm threshold, automatic sound and light alarm when dust exceeds the standard. It is mainly used for continuous monitoring of total dust in various dust working places and environmental monitoring in public places.

GCG1000 dust concentration sensor features

This product is GCG1000 light scattering digital dust concentration monitor based on the derivative, by adding an internal power source, the instrument can be carried around for monitoring and can store the monitored data. After monitoring through the USB excuse and computer transmission, to achieve the analysis and processing of data, simplify the monitoring you, and optimize the way of data collection.

GCG1000 dust concentration sensor parameters

(1) Principle of measurement: principle of light scattering;

(2) Objects of measurement: dust detection in the workplace and dust environmental monitoring.

(3) Measurement error: ±15%;

(4) Measurement range: 0.1mg /m3 ~ 1000 mg/m3;

(5) Display mode: four-digit LED digital tube;

(6) Signal output: With its own storage function, it can be uploaded to the computer via USB cable;

(7) Power supply: With its own rechargeable battery pack and charger

(8) Dust concentration alarm point: It can be set at any point to sound and light alarm

(9) Operating environment: Temperature: 0 ~ 40℃;

Relative humidity: < 95%;

Atmospheric pressure: 86 kPa ~ 106kPa;

(10) size :(220×145×110) mm

(11) Weight: ≤ 2.0kg

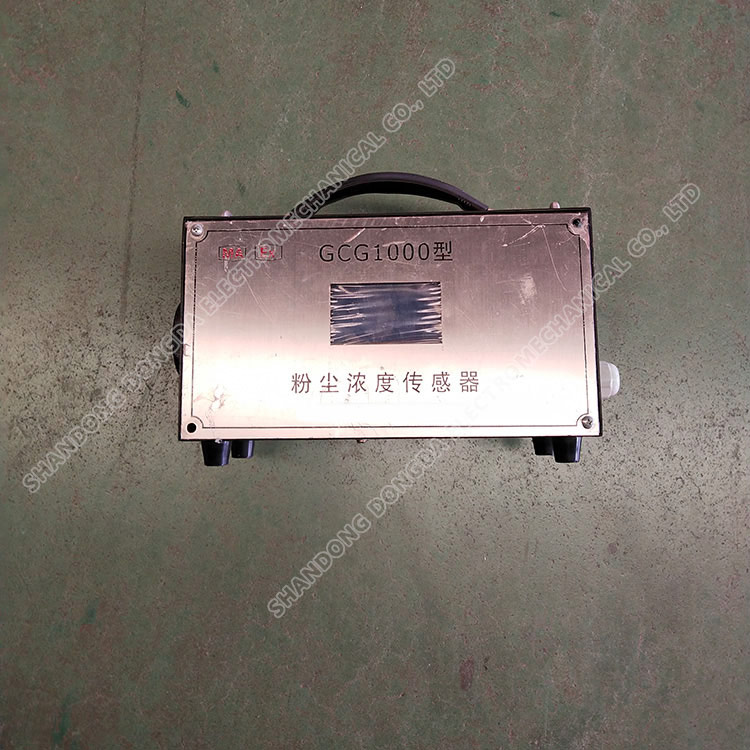

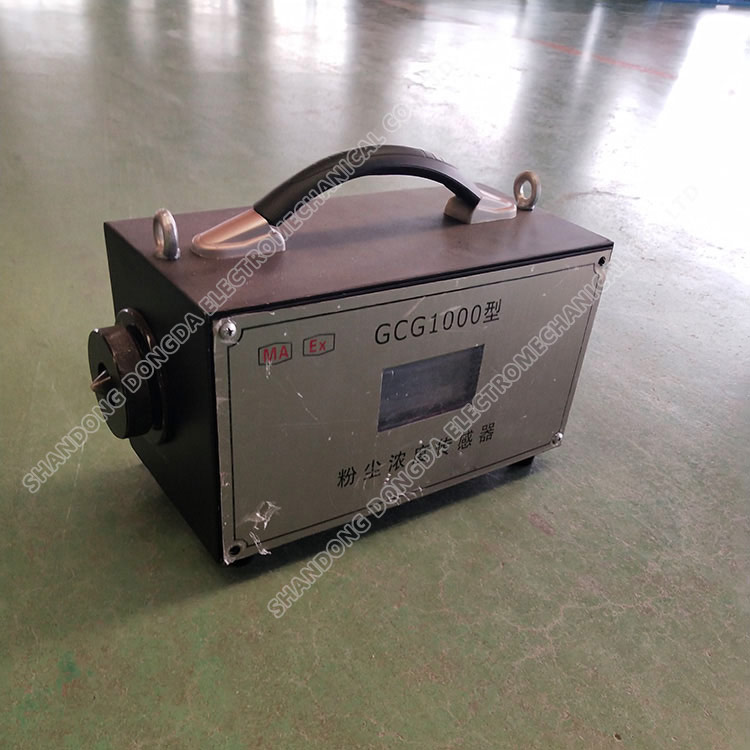

GCG1000 mine dust concentration sensor physical picture
