ZYJ-M6 pressurized air supply self-rescue device

Overview of ZYJ-M6 Pressurized air water supply self-rescue device

Mine air pressure is save water supply system in the coal mine emergency plan one of the important systems in the six big system, to prevent underground in the event of disasters, to ensure the downhole victims under the harsh environment to drink to the health and safety of drinking water, our company in accordance with the relevant national requirements and the ministry of health of the drinking water quality processors health safety standards {2001} mine air pressure is developed by the requirements of save water supply system.

The mine pressure air self-rescue water supply system is the first of its kind in China. After a long time experiment in coal mine, it fully meets the needs of underground workers. Adopt the PVC alloy capillary tube ultrafiltration membrane with the international leading level, the filtration precision reaches 0.01 micron, can thoroughly filter out the bacteria, virus, colloid, rust and other impurities. Unique principle of vertical cross flow filtration, throttling dirt can be discharged when using ordinary tap water, filter core is not dirty and blocked.

Mine pressure air self-rescue water supply system is a new product integrating isolated gas breathing device and drainage device, which has a constant air supply quantity, a constant water supply and a manual stable pressure regulating device.

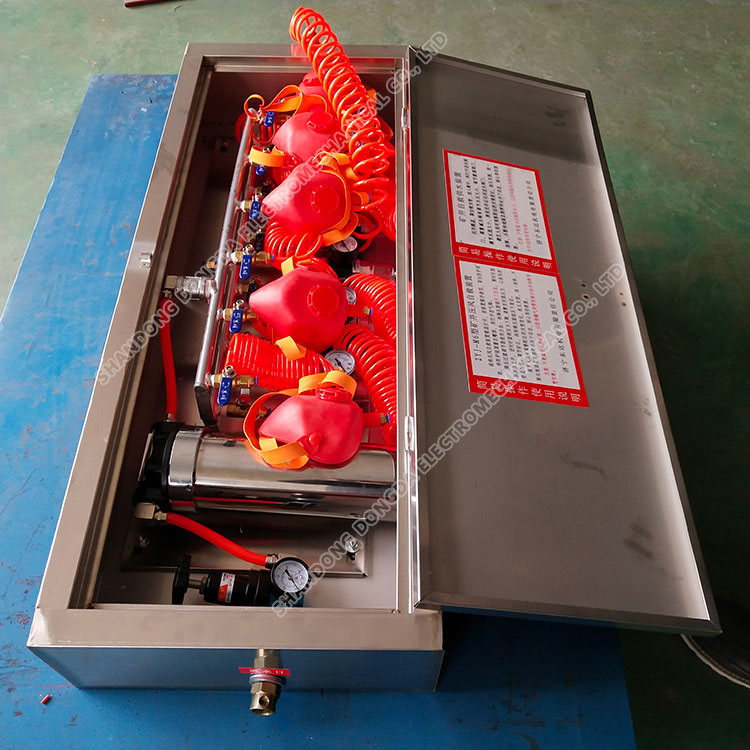

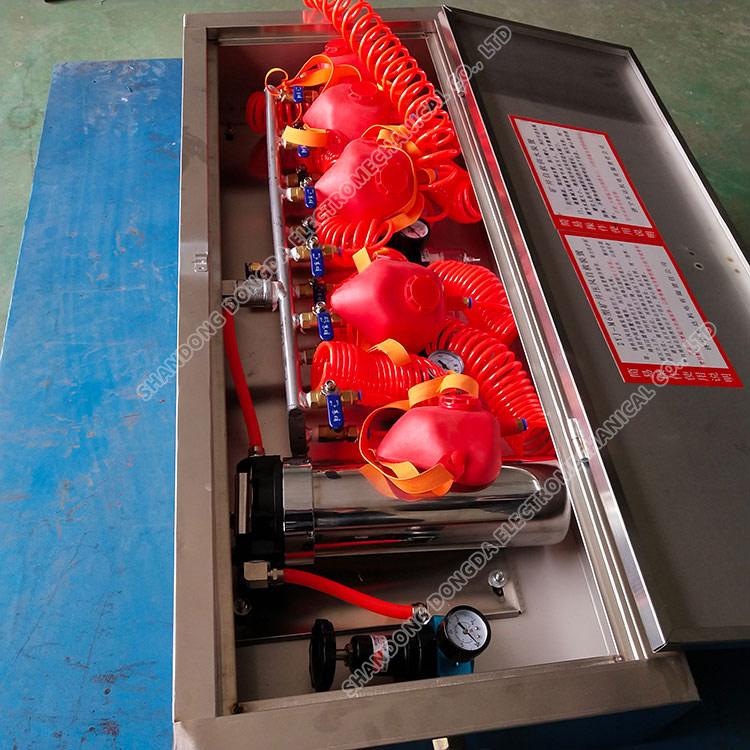

ZYJ-M6 self - rescue device composed of pressurized air supply

On the basis of the pressurized air self-rescue device, the mine air self-rescue water supply system has been added, such as inlet pipe, water filter, water pressure gauge, drainage device (multiple groups), etc. The same box, the installation board, the total intake pipe, the total intake pipe is made of stainless steel. Six groups of water supply and six groups of gas supply (can be designed according to requirements).

Working principle of ZYJ-M6 pressurized air supply self-rescue device

In addition to breathing fresh air directly through self-suction filter mask, municipal tap water filtered by water purification filter can also be obtained in the mine pneumatic self-rescue water supply system. Fresh air and water are connected by spring hose, which can be expanded and retractable freely and easy to use.

Mine air pressure save water system of water purification currently circulating water filter cartridge filters using advanced import filter, PP cotton to various impurities, rust, sludge, jelly, suspended solids, organic matter, residual chlorine and other substances to filter for many times, and the bacteria, different color, odor material, tiny pollutants effectively dispel, adsorption material, water quality sweet and tasty, greatly improved the water quality of purified water.

Technical parameters of ZYJ-M6 self-rescue device for pressurized air supply

System air supply pressure: 0.3 ~ 0.7mpa

Breathing apparatus air supply range: 30 ~ 55L/min

Respirator pressure adjustment range: 0.05-0.1mpa (manual pressure adjustment)

Water inlet pressure of the system: 0.1 ~ 0.5mpa

Water output of drainage device: 0 ~ 7L/min

Air supply mode: ground system or separate pump station

Zyj-m6 self-rescue device of pressurized air supply
