FQW25-50/W pneumatic submersible pump for mine

Introduction of FQW25-50/W Mine pneumatic submersible pump

Fqw25-50 /W Mine pneumatic submersible pumps are used as conventional means of transportation. Reliable positioning and waterproof measures should be taken during transportation to prevent vibration and impact. Barbaric loading and unloading are strictly prohibited, and transportation with corrosive substances shall not be mixed. The product shall be stored in an upright position in a ventilated and dry warehouse, and shall not be stored with corrosive substances

Fqw25-50 /W Mine pneumatic submersible pump Safety precautions

1. When there is no water, the air source should be shut down immediately.

2. The working pressure shall not be greater than 0.70mpa.

3. If the fault is found, stop the machine and use it after normal maintenance.

Technical parameters of FQW25-50/W mine pneumatic submersible pump

Pump model FQW25-50/W

Rated flow rate m /hF 25

Rated head m 50

Working pressure MPa 0.5

The gas consumption is m /min 8

The quality of 34 kg

Size 347 mm 462 x Ф shape

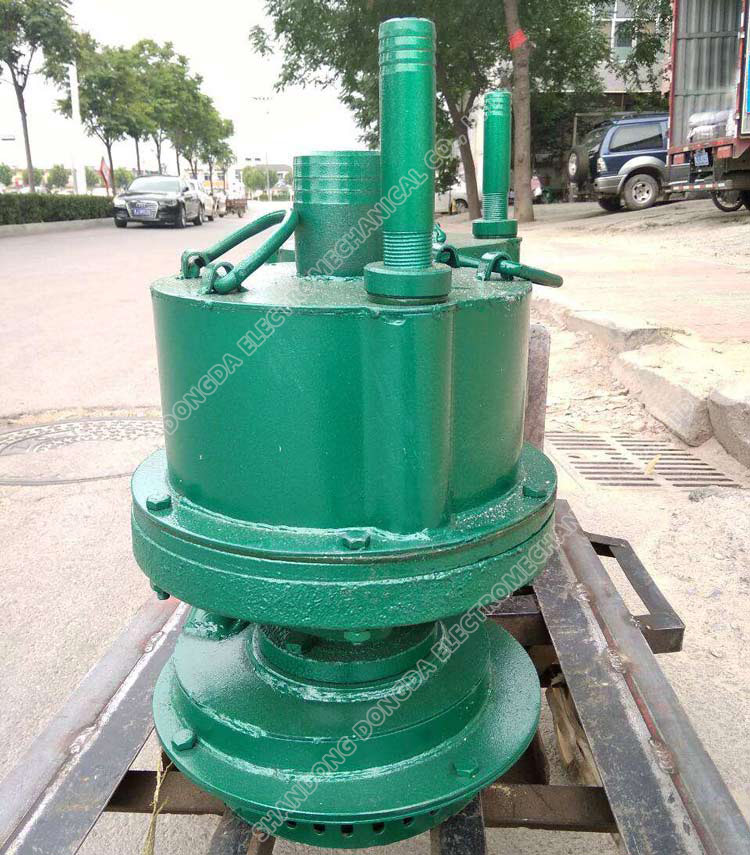

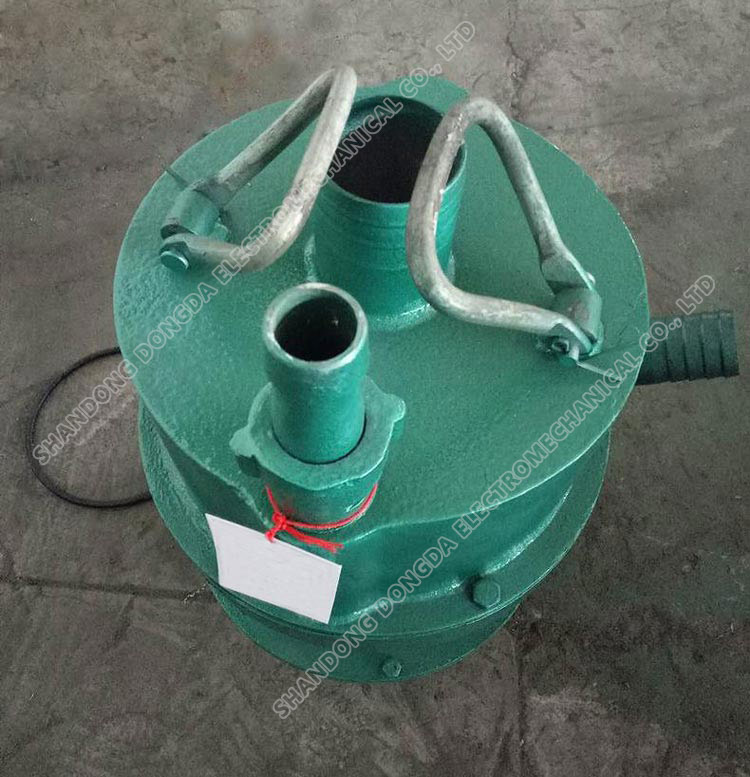

Fqw25-50 /W Mine pneumatic submersible pump physical drawing
