KTH15 explosion-proof telephone introduction
The intrinsically safe automatic telephone and intrinsically safe anti-noise automatic telephone are the high performance and high reliability communication terminals developed successfully by adopting modern electronic technology and fully integrated circuit based on our company's long experience in the research of coal mine production scheduling communication terminal equipment. It is matched with KT8013 or KTA12 couplers, and can be connected with various existing ground switches or dispatching switchboards to form underground coal mine production dispatching system. Features: The shell of this telephone is made of anti-static reinforced polyester, waterproof, dustproof, anticorrosive and up to IP65, suitable for extremely harsh environment. The structure of the machine is characterized by hanging and desktop, and the dialing mode is P/T compatible.
KTH15 Explosion-proof telephone principle and application
The shell of KTH15 explosion-proof telephone is made of anti-static reinforced polyester, waterproof, dustproof, anticorrosive and up to IP65, suitable for extremely harsh environment. Wall mounted installation and newly developed fork spring switch mechanism are adopted. There are no movable parts on the telephone.
KTH15 explosion-proof telephone can be used as anti-noise communication terminal in high-noise environment in underground coal mine, such as mining face, transfer point and other places. KTH15 explosion-proof telephone can also be widely used in other high temperature, high noise, high humidity, heavy pollution of the harsh working environment, such as power plants, coal preparation plant, steel works, tunnels, ports, chemical plants, and so on as industrial communication terminals.

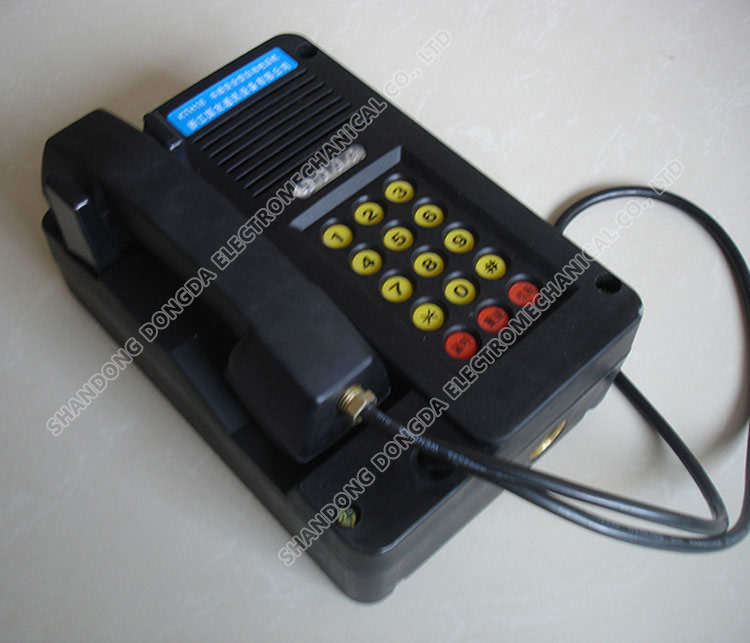

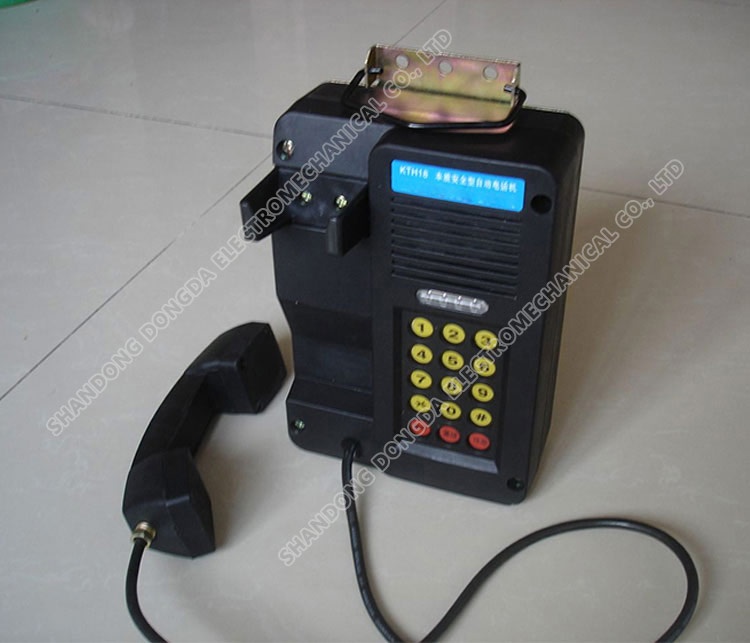

Physical picture of KTH15 explosion-proof telephone
